Automated Forklift AGV

Automated Forklift AGV Check Details & Parameters

Automated Forklift AGV

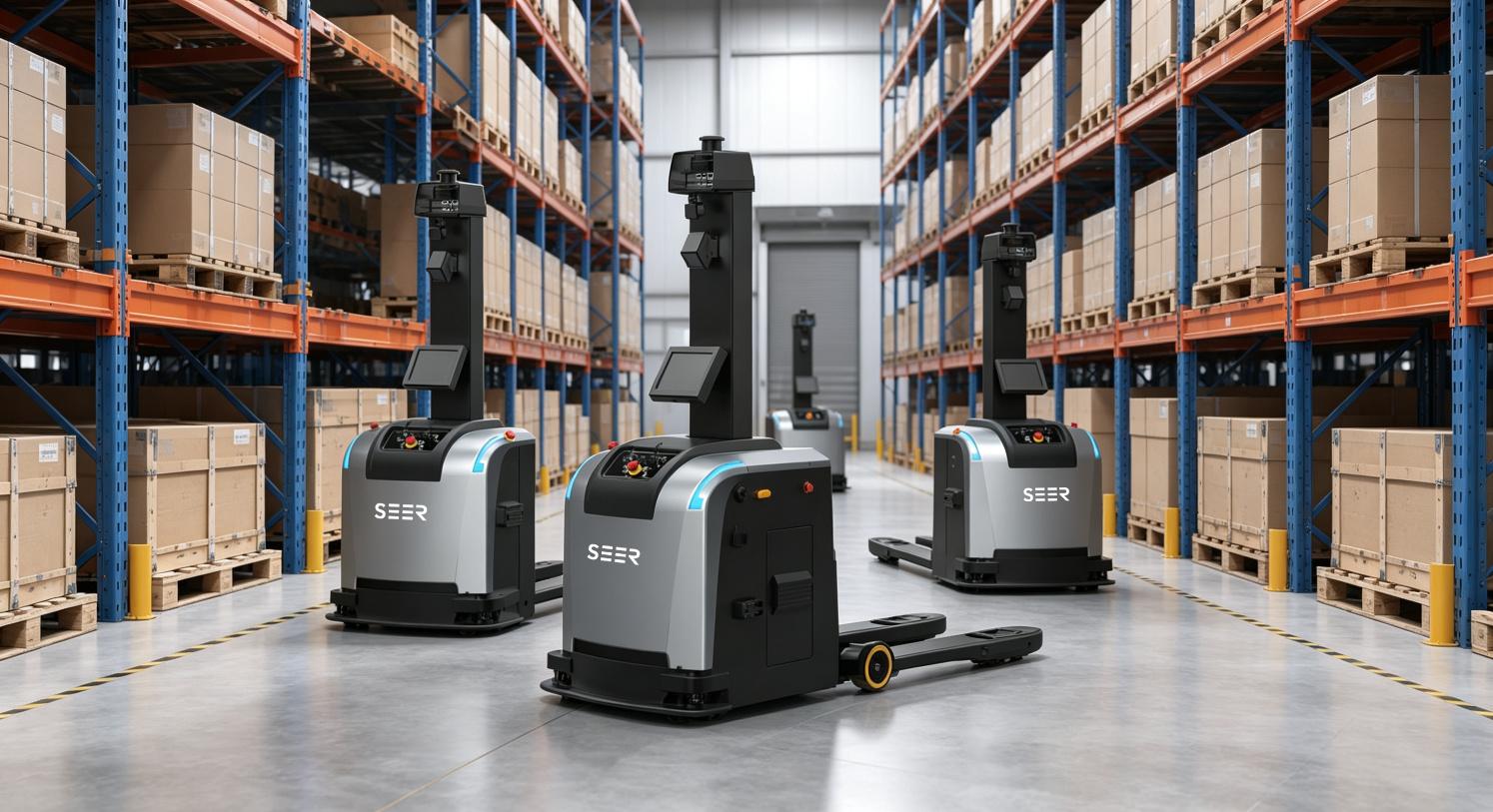

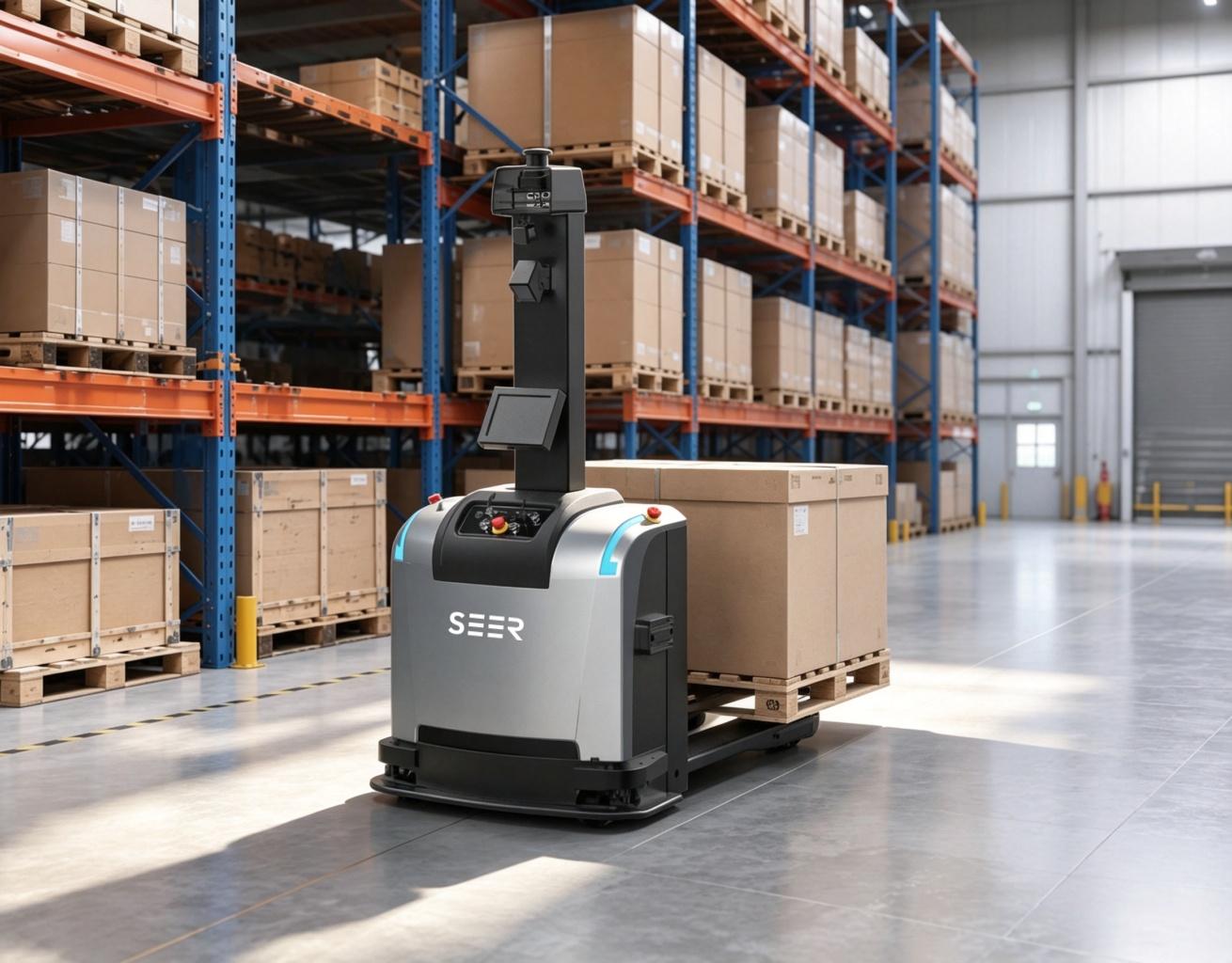

SEER Robotics self-developed automatic truck adopts advanced laser SLAM natural navigation technology, which can realize high-precision pallet independent identification, handling and efficient turnover without modifying the on-site environment. SEER Robotics is the source of research and development and manufacturers, with independent controller core technology and eliminate middlemen, support bulk purchase, to provide you with a more competitive ex-factory price and faster delivery cycle.

Automated Forklift AGV Important Parameters This laser SLAM automatic truck is mainly used in large-scale high-level three-dimensional warehouses, narrow-channel high-density storage areas, production workshop line-side docking and cross-regional long-distance freight handling in factory workshops.

Navigation method:
Laser navigation
Positioning accuracy:
±10mm
Rated load:
1500 kg
Automated Forklift AGV

Automated Forklift AGV Characteristics

Independent research and development of core brain controller:
Based on self-research high-performance controller construction, unified management of robot hands, eyes and feet and other modules, from the underlying core hardware and software to ensure the high stability of the system.
High-precision pallet adaptive recognition:
Built-in advanced visual sensors and recognition algorithms, even if the pallet position is offset, the truck can be fine-tuned autonomously to achieve high-precision and accurate forking of ± 10mm.
Rapid deployment without modifying the environment:
Laser SLAM navigation technology is adopted, mapping and positioning do not rely on reflectors or magnetic strips, greatly shortening the project site deployment cycle.
All-round laser safety protection:
The body safety scanning range is 360 degrees, and a variety of safety obstacle avoidance LiDAR sensors and safety anti-collision strips are integrated to provide three-dimensional protection and ensure the safety of man-machine mixed running.
Multi-vehicle hybrid intelligent collaborative scheduling:
With RDS robot management system, it can realize the unified hybrid scheduling and efficient avoidance of mobile robots and trucks with different chassis.
Fast implementation of DT zero code:
Combining Roboshop implementation tools and DT system, mapping, path planning and virtual simulation tuning can be realized on the software side.
Automated Forklift AGV Structured Detailed Parameter Table
Parameter classification Parameter name SFL-CBD15 (Domestic Version) SFL-CBD15-CE (CE specification)
Basic parameters Product Name Laser SLAM Automated Guided Vehicle Laser SLAM Automated Guided Vehicle
Basic parameters Navigation methods Laser navigation Laser navigation
Basic parameters Rated load 1500 kg 1500 kg
Physical Specifications Vehicle width 932 mm 980 mm
Physical Specifications Load center distance 600 mm 600 mm
Physical Specifications Total weight 388 kg 403 kg
Physical Specifications Increase height 205 mm 205 mm
sports performance Maximum running speed 2.0 m/s 1.4 m/s
sports performance Minimum turning radius 1524 mm 1532 mm
Navigation performance Positioning accuracy ±10 mm ±10 mm
Battery power Charging method Manual charging / Automatic charging Manual charging / Automatic charging
Battery power Charging time 1 h 1 h

Automated Forklift AGV Contrast Point

Compared with the handling equipment based on ordinary restructuring or third-party controller, the core advantage of SEER Robotics automatic carrier lies in the high integration of software and hardware. All mobile handling equipment has a built-in controller developed from the source, which opens up the algorithm, drive, perception and motion control from the bottom, which makes the vehicle’s action response faster and docking accuracy higher in complex scenes (such as narrow channel rotation and dense cargo space). At the same time, its seamless docking RDS scheduling management system, greatly reducing the project implementation of multi-brand robots can not mix and poor system compatibility barriers.

Automated Forklift AGV
Restricted access to narrow channels and high-density storage:
SEER Robotics automatic handling vehicles have a very narrow body width of only 932mm. With the self-developed narrow channel path planning algorithm, we have solved the problem that traditional handling equipment is difficult to smoothly pass and turn around in dense pallet storage areas.
The irregular location leads to a high failure rate of forking:
In view of the pain points of the position deviation or inconsistent placement of the pallet after long-distance transportation, we have solved the safety and efficiency problems that the traditional automatic handling equipment cannot automatically correct the angle and is easy to hit the pallet, thus causing downtime.
Chaotic scheduling of cross-regional complex processes:
Relying on RDS and M4 intelligent logistics management systems, we have solved the pain points of information flow and logistics faults caused by traditional manual handling or single-machine vehicle operation between multiple production workshops and multiple processing processes.

Automated Forklift AGV Instructions For Use

Scene mapping and environmental scanning:
Roboshop a one-stop implementation tool to remotely control the truck to walk 1 circles in the factory area, and use high-precision LiDAR to scan and automatically generate a two-dimensional environmental point cloud map.
01
Location and path network planning:
Draw the vehicle’s driving path on the software map, mark the pallet parking point and charging pile position, and configure the corresponding safety obstacle avoidance sensor detection area.
02
System docking and task distribution:
Interface the RDS robot scheduling management system with the existing MES or WMS system of the enterprise to realize the automatic delivery of task orders and vehicle scheduling.
03
Daily operation and automatic charging:
The truck runs autonomously according to the task issued, and automatically drives to the charging station for electric energy supplement when the electric quantity is lower than the preset threshold, without manual duty.
04

Automated Forklift AGV For The Crowd

Warehouse and workshop logistics system integrators:

Suitable for system integrators who are committed to providing complete intelligent transformation solutions for terminal manufacturing enterprises. SEER Robotics provides a one-stop software and hardware interface and an open platform to help integrators complete the delivery of automation projects in a short time.

Warehouse and workshop logistics system integrators
Large semiconductor and 3C electronic manufacturing plant:

Suitable for high cleanliness and material handling accuracy requirements of electronic manufacturing processing plant. Its precise docking and smooth transportation of ± 10mm can effectively ensure the safe circulation of high-value components between the online edge and the three-dimensional library.

Large semiconductor and 3C electronic manufacturing plant
Automobile and parts manufacturing OEM:

Suitable for workshop parts transfer cumbersome, man-machine mixed scene complex automotive OEM. Use multi-sensor three-dimensional safety protection and high load capacity to solve the high-frequency handling of heavy-duty frames or parts between line and edge multi-station.

Automobile and parts manufacturing OEM
Third-party logistics and large-scale integrated warehousing enterprises:

Suitable for warehousing operators who need 24/7 high-frequency sub-pallet goods in and out of the warehouse. Through automatic charging and cluster scheduling, it helps to significantly reduce handling labor costs and improve overall cargo turnover.

Third-party logistics and large-scale integrated warehousing enterprises

Certificates And Factories

证书大图

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

证书小图

FAQ

Q: Do SEER Robotics automatic handling vehicles need to stick magnetic strips or reflectors on the warehouse floor when deploying?
A: No. This product uses advanced laser SLAM natural navigation technology, the truck through the vehicle LiDAR scanning around the fixed natural reference to build a map, do not need to lay magnetic strips on the ground or put reflectors on the wall, greatly reducing the implementation cost.
Q: How to ensure the safe and efficient operation of multiple vehicles and different types of robots in the same workshop?
A: By configuring the RDS robot management system developed by SEER Robotics, the unified coordination and traffic control of multiple types of robots can be realized. The system will intelligently plan the path to avoid deadlock and ensure the order of multi-vehicle mixed operation.
Q: When the vehicle forks the tray, if the tray position is tilted, can it be forked normally?
A: Yes. The vehicle is equipped with high-precision sensors and pallet recognition algorithms, which can autonomously scan and recognize the actual position and angle of the pallet jack before forks. Even if the pallet has a certain degree of deflection, the vehicle can autonomously fine-tune its posture for accurate fork taking.
Q: If people or obstacles suddenly appear on the driving path, can the vehicle stop safely?
A: Yes. The vehicle body is equipped with all-round obstacle avoidance LiDAR and safety anti-collision strips. When a person or obstacle is sensed within the detection range, the vehicle will perform deceleration, safe avoidance or emergency braking to ensure the absolute safety of the human-machine coexistence environment.
Q: Can the automatic truck interface with the existing digital systems such as ERP, WMS or MES in the factory?
A: Yes. SEER Robotics software system provides standard and rich and open API interfaces, supports seamless data docking with mainstream WMS, MES and other enterprise systems in the market, and realizes data closed loop of business chain.
Q: How to solve the battery life problem of the automatic handling vehicle, do you need to manually replace the battery?
A: This product supports automatic online charging, and can also perform manual fast battery replacement. It takes only 1 hour of fast charging to achieve high battery life, which makes it easy to support 24/7 uninterrupted operation.
