Heavy Lifting Robots

Heavy Lifting Robots Advanced Technology

Heavy Lifting Robots

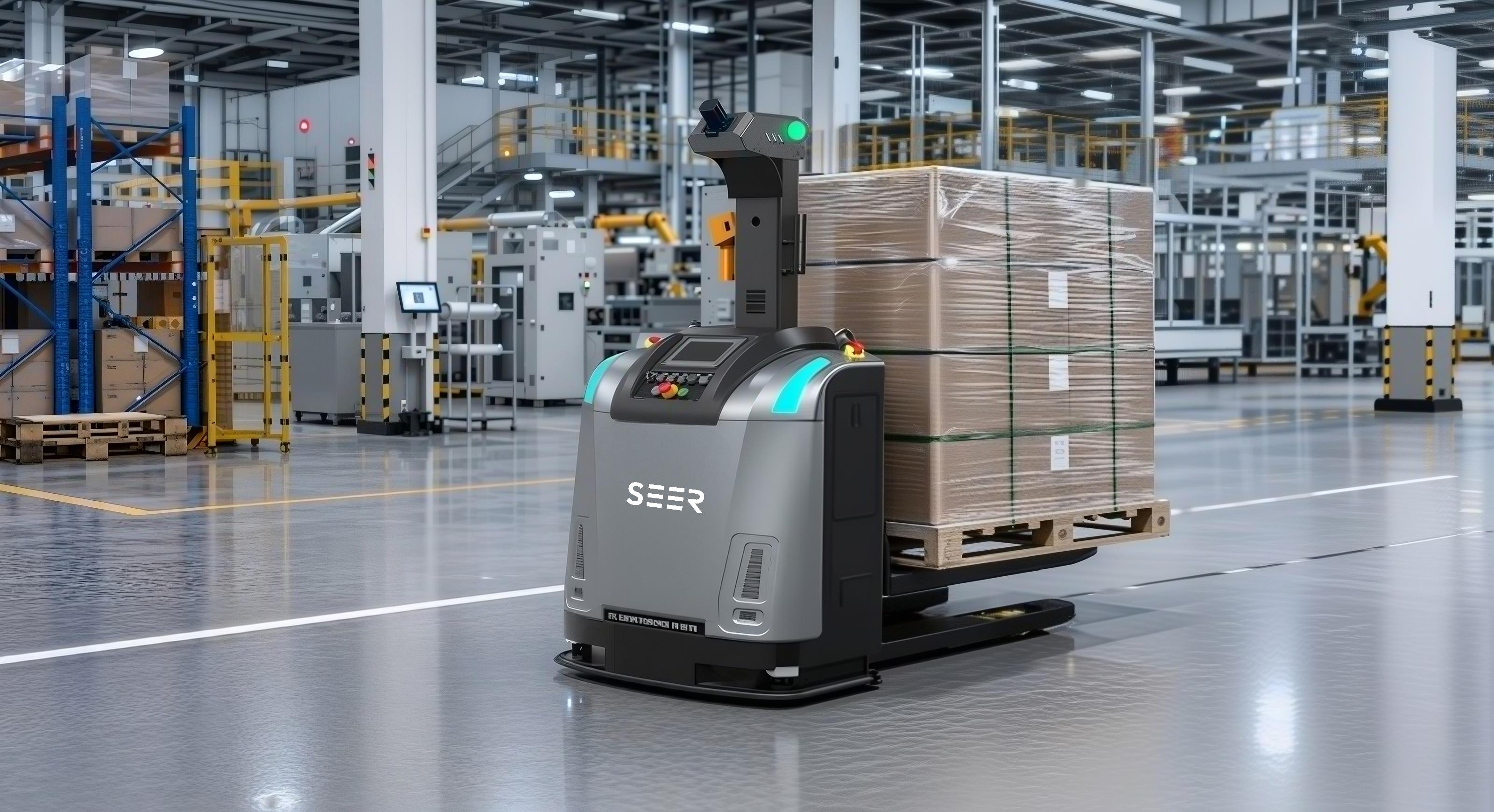

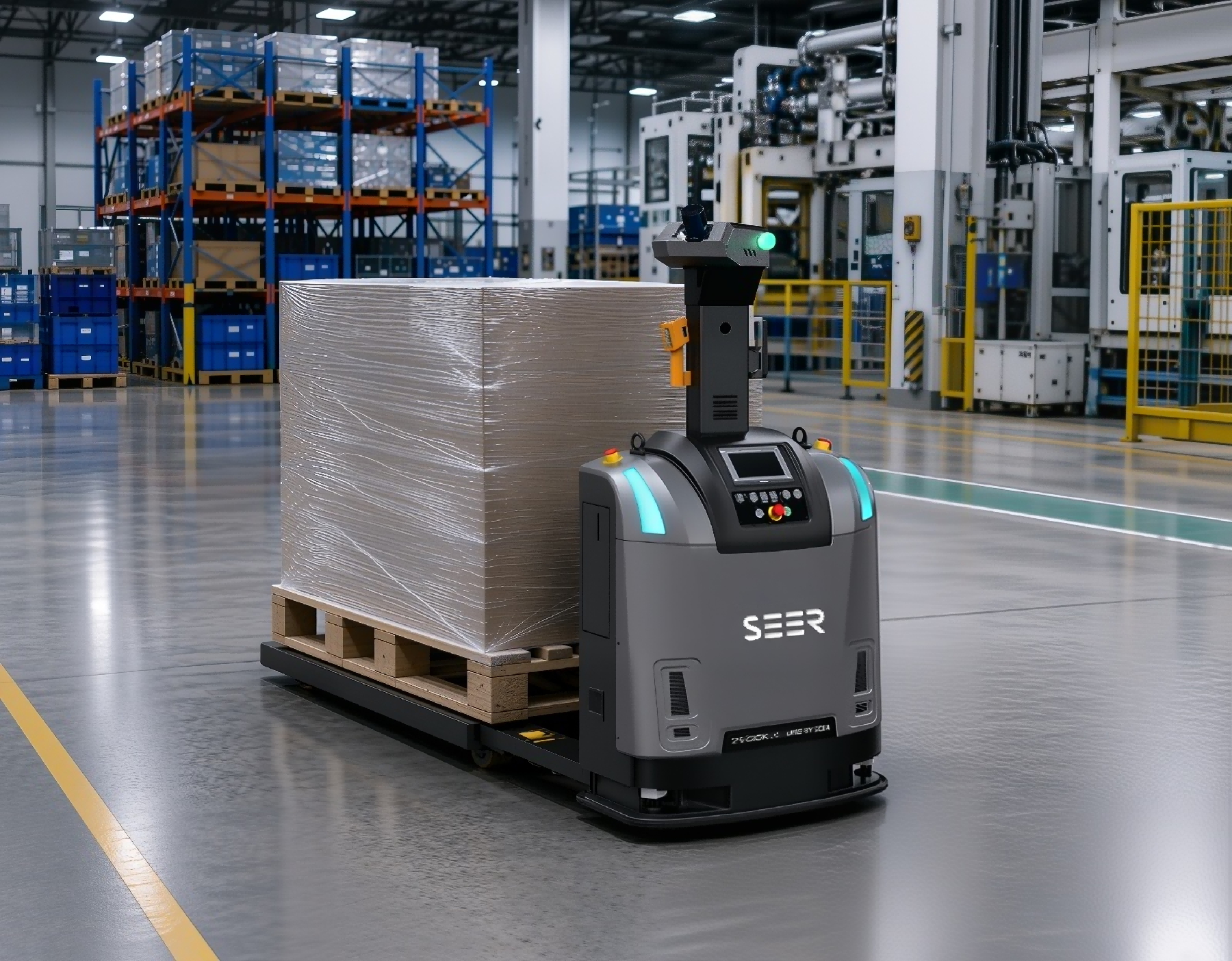

SEER Robotics has newly introduced SFL-CBD30 heavy-duty lifting robots, which realize a super-large rated load of up to 3 tons and high-precision LiDAR laser natural feature navigation under a compact body. As the world’s leading source manufacturer, we face the global robot development end and factory batch supply, refuse traders to change hands, and guarantee you more competitive factory-direct sales prices and faster delivery cycles.

heavy lifting robots are mainly used in high-load industrial scenarios such as automobile manufacturing, new energy lithium battery production, engineering machinery assembly, and intensive warehousing and logistics.

Rated load
3000 kg
Navigation
LiDAR navigation
Positioning accuracy
plus or minus 10mm

Heavy Lifting Robots Features

3-ton compact super-large load
Under the compact body size, an ultra-high rated load capacity of 3000 kg is realized, which is specially designed to cope with the smooth lifting and efficient transfer of pallets of various overweight materials in heavy industrial manufacturing and intensive storage.
Adaptive AI pallet recognition
Built-in advanced AI recognition algorithm, heavy-duty mobile robot can independently identify a variety of specifications, colors, film, and damaged pallets; support multi-angle adaptive adjustment and high-precision fork material.
LiDAR multi-modal flexible navigation
Supports laser SLAM navigation, reflector navigation, and natural feature navigation, which can flexibly cover all kinds of complex workshop scenes, such as high dynamics and no need to transform the environment, ensuring flexible and changeable handling paths.
8 hours of strong battery life and fast power exchange
Equipped with 51.2V/106 A large-capacity power battery with a comprehensive battery life of up to 8 hours, using a humanized quick-release structure design, beginners can easily complete manual battery replacement in 3 minutes.
40-meter ultra-far horizon four-layer safety protection
Based on an all-round configuration such as a single LiDAR and 3D obstacle avoidance laser, the detection range is as wide as 40 m, supplemented by a safety touch edge and hardware self-inspection to create a stable four-layer all-round safety protection network.
Double-spring shock absorption Full series of high-profile
The full series of drive wheels are equipped with a double-spring shock absorption system as standard, and a reinforced hydraulic cylinder is adopted, which effectively eliminates the problem of slipping under heavy load from the underlying hardware and significantly improves the stability of the vehicle.
Heavy Lifting Robots Technical Parameter Table
Parameter classification Technical indicators Standard Specification Value
Product Definition Corresponding product model SFL-CBD30
Product Definition Basic Product Name Laser SLAM Ground-based Unmanned Forklift
Performance Specifications Rated handling load 3000 kg
Performance Specifications Full load driving speed 1.5 m/s
Performance Specifications Unloaded driving speed 1.66 m/s
Navigation and Positioning Navigation and positioning methods Laser SLAM Navigation
Navigation and Positioning Repeatability ±10 mm
Navigation and Positioning Repeat angle accuracy ±1°
Mechanical structure Overall vehicle dimensions 1720 x 960 x 2090 mm
Mechanical structure Forklift External Dimensions 1220 x 173 x 60 mm
Mechanical structure Minimum turning radius 1360 mm
Electrical system Power battery specifications 51.2V / 106 Ah
Electrical system Combined battery life 8 h
security system Core protection configuration 3D obstacle avoidance laser and safety edge

Heavy Lifting Robots
Comparison Points

In today’s high-load industrial handling, the traditional heavy-duty forklift and stack-high equipment are often too bulky; it is difficult to operate flexibly in the narrow storage channel. SEER Robotics, through innovative architecture design, heavy lifting robots successfully accommodate 3 tonnes of super-large rated load in a compact vehicle size, greatly improving the space utilisation rate of dense storage space. In view of the common problems such as heavy-duty equipment slipping easily in complex industrial sites or low docking accuracy of non-standard pallets, SEER Robotics provides industry-leading software and hardware ecological support. The equipment can complete rapid map building and multi-vehicle hybrid scheduling of the whole plant without changing the existing environment, enabling system integrators to efficiently deliver high-security automated handling projects across industries and scenarios.

Lorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsum Lorem ipsumLorem ipsum
Excessive volume of traditional heavy-duty equipment leads to channel congestion
Heavy-duty handling equipment often requires extremely wide running channels. SEER Robotics integrates 3 tonnes of load into a compact body, greatly reducing the width of right-angle stacking channels.
Identification failure due to different pallet specifications or film wrapping
Traditional forklifts cannot automatically adjust non-standard or wrapped film pallets, and SEER Robotics uses an AI pallet recognition algorithm to realise multi-angle high-precision adaptive fork picking.
Complex or wet ground causes heavy-duty drive slippage
Heavy loads are prone to wheel idling when starting or turning. SEER Robotics ensures super stability in the whole scene through standard dual-spring shock-absorbing drive wheels and reinforced cylinders.

Instructions For Using Heavy Lifting Robots

Drive and core controller hardware wiring
The core control unit of the vehicle is stably connected with the shock-absorbing drive wheel, the reinforced hydraulic cylinder and the peripheral interface.
01
Roboshop Tool Trackless Scanning and Mapping
Quickly build flexible digital LiDAR maps by driving unmanned forklifts autonomously in the workshop through one-stop implementation tools.
02
AI pallet identification and fork parameter calibration
The pallet identification function is adjusted in the system software to optimise the kinematics model under the full load state of 3 tonnes.
03
Task distribution and multi-vehicle hybrid scheduling
The heavy-duty forklift is connected to the logistics management system, and the cross-process and cross-regional material handling tasks are automatically distributed through the system software.
04

Heavy Lifting Robots For People

High-load industrial non-standard car and equipment plant

Suitable for manufacturing plants facing the development needs of 3-tonne and above compact heavy-load forklifts. By adopting the control system and standardised forklift chassis infrastructure provided by SEER Robotics, users can focus more on the development of upper-level customised applications.

Automated logistics system integrator

For automobile manufacturing, new energy lithium and other industries to build high-load intelligent assembly line integrators. In real customer cases such as JK Robotics or Sinotrans, provide them with integrated heavy-duty component packages and Roboshop and other quick landing tools.

Director of warehousing and logistics in large manufacturing plants

Serving high-load production enterprises that need to transfer overweight pallets and semi-finished products. To help it completely solve the traditional workshop manual transfer labour intensity, multi-models cannot be mixed with formation scheduling, and heavy handling is prone to collision with major safety hazards.

Mobile robot technology research and development team

For universities or research institutes that focus on AI vision recognition, multi-sensor fusion and heavy-duty flexible handling. Provide an open hardware platform equipped with an HMI display and high-precision LiDAR navigation, lowering the threshold for the development of high-load physical intelligence.

Certificates And Factories

证书大图

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

证书小图

FAQ

Q: What is the maximum rated load of this heavy-duty unmanned forklift product?
A: The rated load of this product can reach 3000 kg, which can meet the automatic transfer of various large loads and heavy pallets while ensuring a compact body.
Q: Does the introduction of this equipment require a large-scale transformation of the existing workshop environment?
A: No, the equipment uses high-precision LiDAR for laser SLAM navigation, so there is no need to lay magnetic strips or reflectors, and it does not damage the existing ground environment of the factory.
Q: If the surface of the pallet in the workshop is wrapped with plastic film or slightly damaged, can the equipment still be picked up normally?
A: Yes, the equipment can be equipped with a powerful AI pallet identification algorithm, which supports multi-angle adaptive identification of pallets with film, damage, different colours and various specifications.
Question: What is the comprehensive battery life performance after the device is fully charged, and is it convenient to replace the battery?
Answer: Equipped with a large 51.2V/106 Ah, battery, the comprehensive battery life can reach 8 h. With a quick-release design, even beginners can easily complete battery replacement within 3 minutes.
Q: How does the equipment prevent wheel skidding and ensure driving stability under heavy load conditions?
A: The vehicle’s drive wheels are equipped with double-spring shock absorbers as standard and equipped with enhanced hydraulic cylinders, which can effectively deal with heavy-load skidding on various complex grounds.
Q: Is this product sold by traders or supplied directly from the source manufacturer?
A: It is a platform-based product developed by the source manufacturer independently, landed on a large scale and shipped directly, excluding middlemen, and can provide highly competitive factory-direct sales prices.
