Can a pallet robot be used in an uneven ground docking environment?

Yes, the robot is equipped with a suspension system and an adaptive algorithm that can handle a certain slope and slightly uneven ground.

Does this pallet robot support customization of different fork sizes?

Yes, as a source factory, SEER Robotics can provide fork customization services according to your specific pallet specifications.

Pallet Robot High Efficiency System

Name: Pallet Robot
Brand: SEER Robotics
SKU: Pallet Robot-001
Price: 15265 USD
Availability: InStock

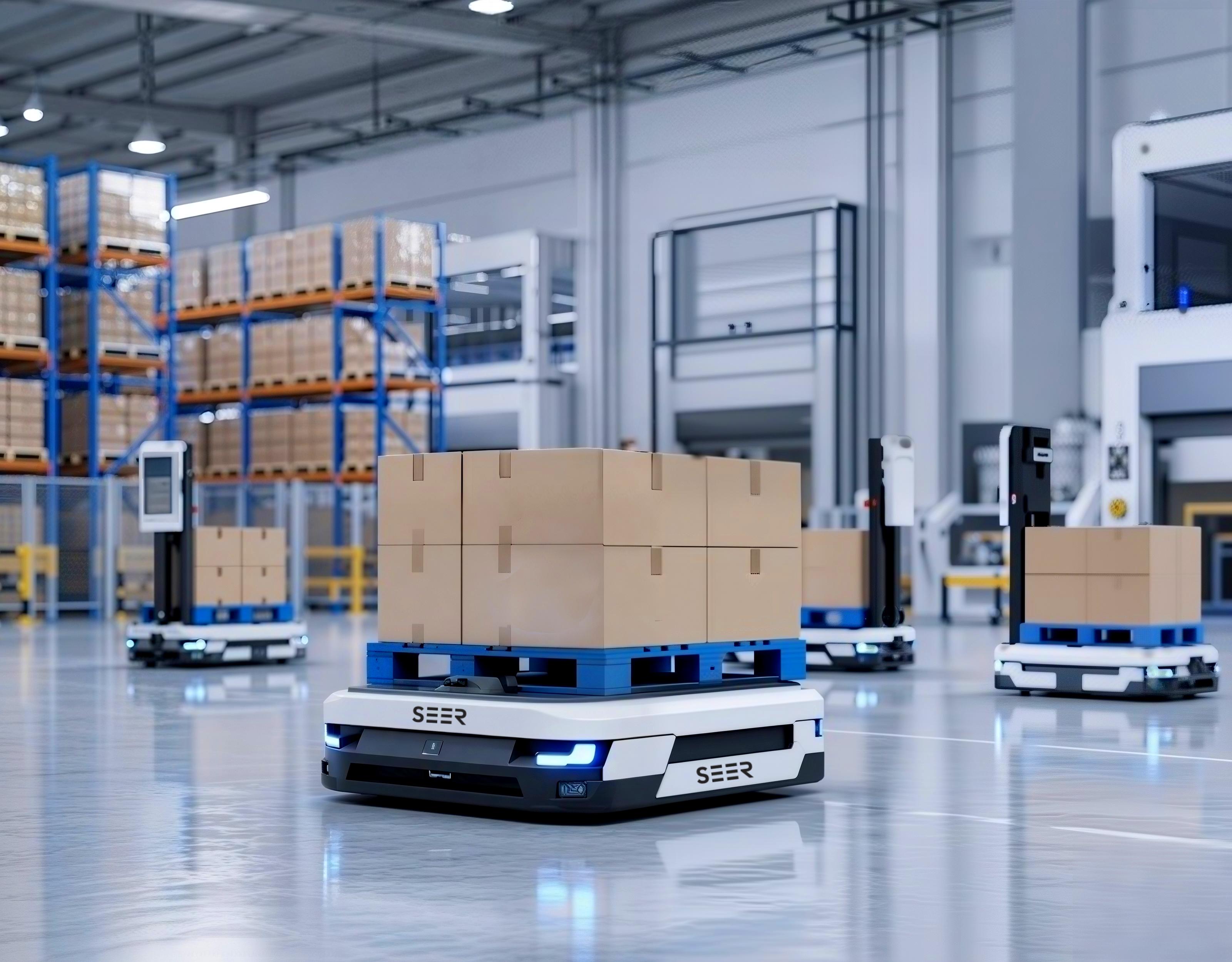

The SEER Robotics pallet robot integrates high-precision navigation and excellent safety protection to realize fully automatic and flexible handling of pallet goods in factories and warehouses. As the world’s leading supplier of intelligent robot controllers, SEER Robotics is a source manufacturer with self-developed core technologies, eliminating middlemen and providing you with highly competitive factory-direct sales prices and professional original technical support.

Pallet robots are mainly used in the automatic transfer of pallet goods in automobile manufacturing, 3C electronics, semiconductor production, and e-commerce logistics warehouses.

Maximum load

1500 kg

Running speed

2 m/s

Navigation accuracy

± 10 mm

pallet robot characteristics

High-precision positioning and navigation

The built-in SRC series core controller, combined with LiDAR SLAM navigation technology, can achieve repeated positioning accuracy of ± 10 mm without modifying the site environment, ensuring accurate pallet fork taking and placement.

All-round safety protection

Equipped with a 360-degree LiDAR obstacle avoidance system, a safety anti-collision strip, and a sound and light alarm; supports multi-level safety zone setting; and ensures the safety of personnel and goods in a complex man-machine mixed environment.

Multi-sensor fusion recognition

3D vision sensors and algorithms are used to realize accurate recognition and adaptive alignment of pallet specifications. Even if the pallet placement position is offset, the robot can automatically adjust its posture and accurately cross.

Powerful system scheduling capability

Perfect docking RDS robot management system, supporting 100-level robots to schedule work at the same time, and can seamlessly integrate with enterprise MES and WMS systems, breaking the underlying data island.

Rapid deployment and implementation

With Roboshop, a one-stop implementation tool, technicians can complete environmental map construction, site setup, and logical orchestration in a few days, greatly shortening the project delivery cycle.

Long-term battery life and automatic charging

Support low-power automatic return to the charging pile, combined with a high-performance lithium iron phosphate battery, to meet 24/7 uninterrupted production needs and reduce manual intervention costs.

Pallet Robot Comparative Point

SEER Robotics’ pallet robot is based on the self-developed SRC series core controller and has “brain” level control accuracy. It has faster response speed and higher stability than a general-purpose controller scheme when dealing with complex path planning and dynamic obstacle avoidance. With its powerful software ecology, SEER Robotics realizes the whole chain from the bottom controller to the upper management system. Users can manage many different types of robots through a unified platform, reducing the difficulty of system integration.

Accurate docking of high-level shelves

In view of the problem that traditional unmanned forklifts are easy to deflect when picking at high positions, SEER Robotics solves the visual positioning deviation when goods are stacked at high positions and significantly improves the storage safety of the three-dimensional warehouse.

Low traffic efficiency in narrow lanes

In view of the problems of narrow warehouse passages and high space utilization requirements, we have solved the problem of the limited turning radius of large equipment, allowing robots to flexibly shuttle in dense storage areas.

Multi-vehicle coordination problem

In view of the problem that different brands and different models of equipment in the factory cannot be uniformly scheduled, SEER Robotics solves the real-time scheduling and avoidance of heterogeneous robot groups, eliminating the risk of traffic congestion.

Instructions for using the pallet robot

Environmental mapping

Use the Roboshop control system to manually operate the robot to scan the factory area and generate high-precision LiDAR maps.

01

Path and station planning

Drag and drop the pick-up point, unloading point, and charging position on the generated map and set the operating speed limit of each area.

02

System docking and debugging

Connect the robot to the WMS system through an API or standard protocol to ensure that the robot can receive task instructions and feedback status.

03

Start operation with one key

After confirming that there is no foreign matter in the safe area, start the task flow on the console, and the robot will automatically perform the pallet handling task according to the preset logic.

04

Pallet Robot For People

Person in charge of automobile and parts manufacturing and purchasing

Suitable for large automobile enterprises such as FAW-Volkswagen to solve the problem of frequent material transfer at the production line, reduce labor intensity, and improve the turnover efficiency of logistics at the production line through automatic handling.

3C Electronics and Semiconductor Technology Director

For Schneider, Philips, and other electronic factories, to meet the needs of cross-process precision distribution of palletized raw materials and semi-finished products in thousands of dust-free or highly automated workshops.

Third-party logistics and e-commerce warehouse managers

Suitable for logistics enterprises such as Sinotrans to solve repetitive handling operations in large-scale storage centers and support rapid deployment to cope with the peak logistics pressure during the e-commerce promotion.

Automation system integrators

For partners who want to quickly build intelligent factory solutions, they can assist them in quickly completing the delivery of whole-plant handling solutions by providing standardized pallet robot hardware and open interface protocols.

Certificates And Factories

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

Technical indicators	Typical Value
Product Model	SFL-CBD145-CE/ SFL-CBD15
Rated load	1400kg – 1500kg
Maximum speed under full load	1.4m/s
Maximum speed under no-load	2m/s
Minimum turning radius	1524/1532mm
Standard lifting height	205mm
Navigation sensors	360° Navigation LiDAR
Obstacle avoidance sensors	Front-mounted safety LiDAR + 3D obstacle avoidance camera
Communication methods	Wi-Fi 802.11 a/b/g/n/ac
