AGV Automated Guided Vehicle

AGV Automated Guided Vehicle Professional & Stable

AGV Automated Guided Vehicle

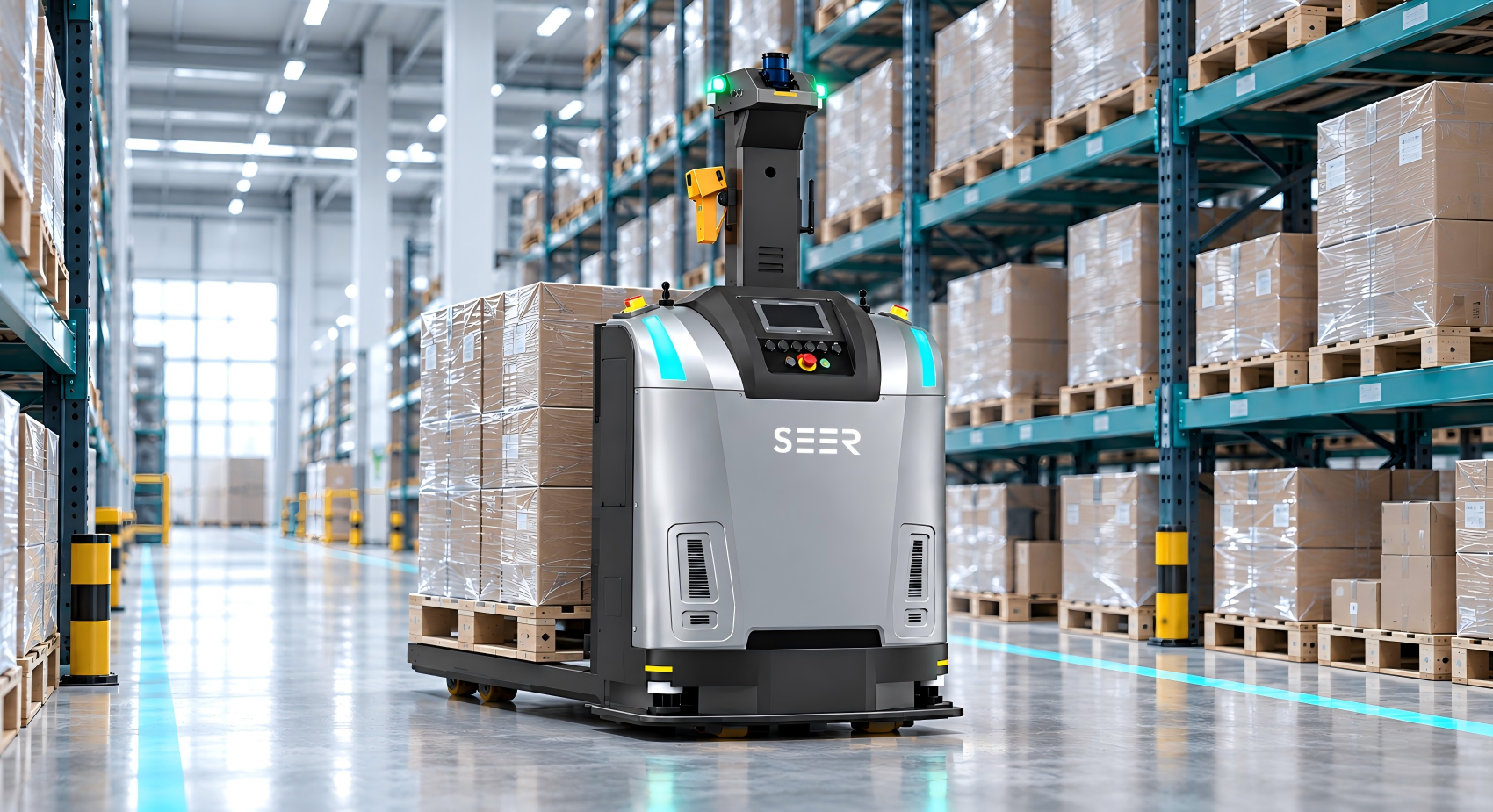

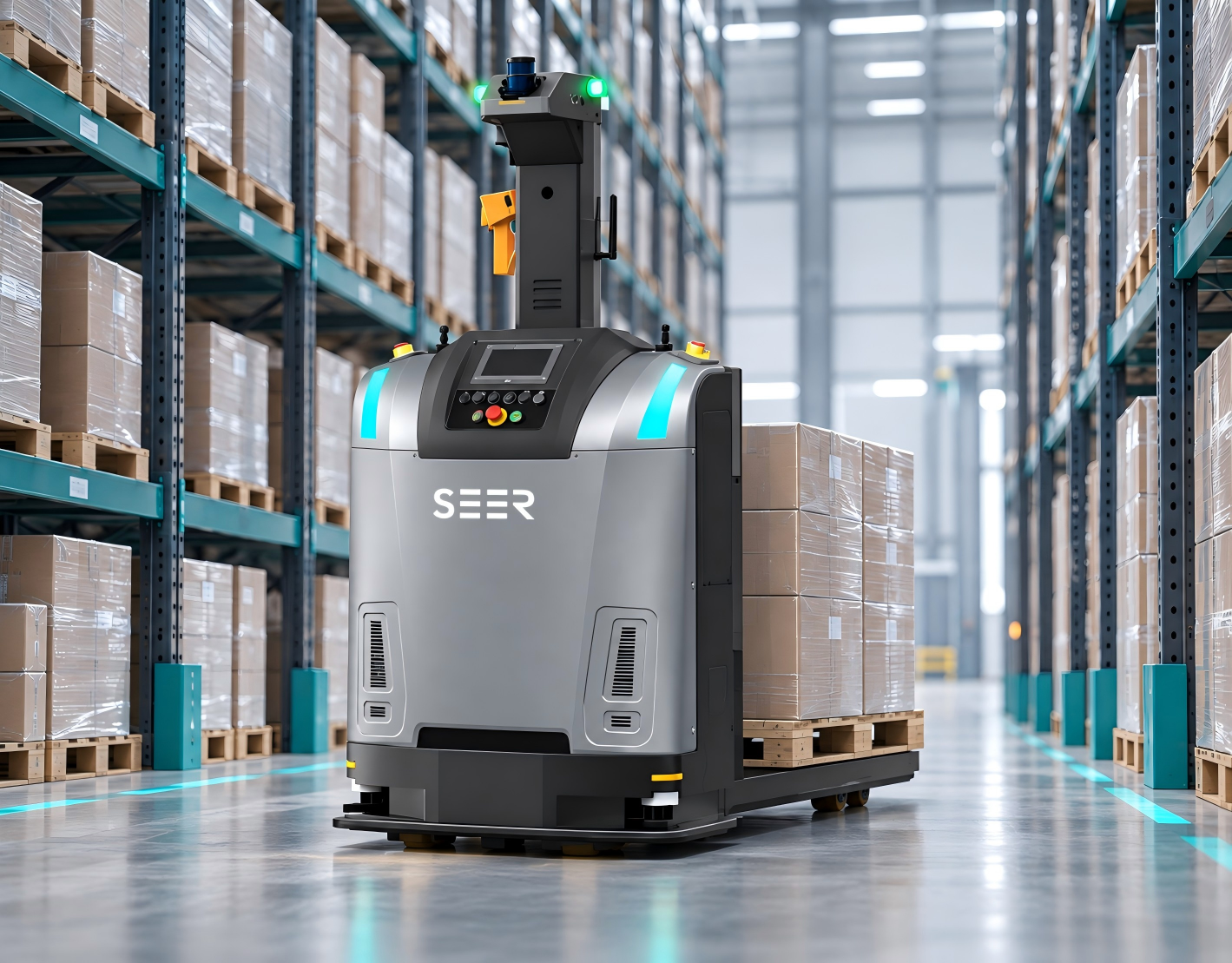

This autonomous pallet truck has a super-strong load of 2 tons and high-precision positioning of 10 mm, which is perfectly suitable for narrow channel operation. SEER Robotics, as a source manufacturer of independent research and development, eliminates intermediate links and provides you with highly competitive ex-factory prices and lightning delivery speeds.

Autonomous pallet trucks are mainly used in e-commerce warehousing, auto parts distribution, 3C electronic production lines, and heavy manufacturing material handling.

Rated load:
2000 kg
Navigation method:
Laser SLAM
Positioning accuracy:
±10 mm

AGV Automated Guided Vehicle Characteristics

Two-ton super load design:
With a rated load capacity of up to 2000 kg, combined with a slim vehicle width design of only 960 mm, it is easy to shuttle efficiently between dense shelves and narrow passages, greatly improving space utilization.
AI intelligent pallet identification:
Equipped with a self-developed AI vision algorithm, it can accurately identify pallets of various specifications, colors, and even damaged pallets from various angles. Completely bid farewell to the trouble of picking pallets and improve the success rate of picking goods.
Three fusion navigation modes:
Support laser SLAM, reflector, and NFL three navigation mode switching; positioning accuracy up to ± 10 mm; and calm handling of high-dynamic and unmodified complex factory environments.
Ten hours of long battery life:
Equipped with a 51.2V high-capacity battery, a single charge can work continuously for 10 hours, and it supports novices to seamlessly complete battery replacement within 3 minutes, ensuring all-weather uninterrupted operation requirements.
40-meter ultra-long obstacle avoidance:
3D obstacle avoidance LiDAR and anti-collision contact edges are configured, the detection distance is up to 40 meters, and a four-layer three-dimensional safety protection system is provided to perfectly ensure the high safety of the mixed-traffic workshop.
The whole system is equipped with dual-spring shock absorption as standard:
The driving wheels are equipped with a dual-spring shock absorption system and an enhanced hydraulic cylinder, which effectively solves the problem of slippery or potholes on the road and ensures the ultimate stability during full-load driving.
Autonomous Pallet Truck Structured Detailed Parameter Table
Parameter name Parameters and Specifications
Product Model SFL-CBD20
Navigation type Laser SLAM Navigation
Rated load 2000 kg
Total weight including battery 650 kg
Vehicle body physical dimensions Length 1720 x Width 960 x Height 2090 mm
Minimum turning radius 1360 mm
Full load driving speed 1.5 m/s
Unloaded driving speed 1.66 m/s
Navigation Position Accuracy ±10 mm
Overall battery life 10 h
Charge to 80% 2 to 3 hours

AGV Automated Guided Vehicle
Comparison Points

Compared with the traditional handling equipment on the market, the Autonomous Pallet Truck developed by SEER Robotics breaks the extreme dependence on standard pallets. Through the introduction of an advanced AI visual recognition algorithm, it can freely deal with laminated, damaged or non-standard colour pallets, greatly reducing the hidden cost of enterprise replacement and standardisation of pallets. With the powerful multi-navigation fusion technology, the equipment can still maintain extremely high positioning accuracy in the highly dynamic workshop where the environment changes frequently. In addition, in continuous high-load operation scenarios, similar products often lead to capacity stagnation due to short battery life or slow charging. This device ensures the continuous flow of the production line through the design of large-capacity batteries and fast power exchange. Combined with its unique four-layer safety protection system, it fundamentally eliminates potential safety hazards under complex working conditions.

Lorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsum Lorem ipsumLorem ipsum
SEER Robotics vision algorithm for accurate identification:
In view of the traditional equipment not being able to identify non-standard or damaged pallets, which leads to frequent stalling and downtime, we have achieves multi-angle adaptive precision forking of various complex pallets.
SEER Robotics Three Minutes Fast Seamless Power Exchange:
In view of the long charging time of continuous production line equipment and the stagnation of logistics, we have ensured round-the-clock uninterrupted and efficient operation through fast power exchange.
SEER Robotics four-layer three-dimensional anti-collision protection:
In view of the collision accidents that are prone to occur in blind areas of densely mixed workshops with people and vehicles, we ensure the absolute safety of personnel and goods through 40-metre ultra-long detection and 3D obstacle avoidance.

Instructions For Use Of AGV Automated Guided Vehicle

Map building and exclusive route planning:
Use visualisation software to drive equipment to scan the workshop, quickly build high-precision maps and set exclusive driving routes.
01
Start automatic pallet identification:
Turn on the AI visual identification function, and the equipment will automatically calculate the fork angle and accurately fork pallets with various specifications.
02
All-weather background collaborative scheduling:
Access the multi-vehicle collaborative scheduling system in the control centre and large-screen real-time monitoring of equipment current power and logistics task progress.
03
Speed manual plug-in and power change:
In case of a low power alarm, the operator only needs three minutes to remove the depleted battery and replace it with a fully charged backup.
04

AGV Automated Guided Vehicle For People

Director of E-commerce Warehouse Logistics:

Faced with massive orders and intensive shelf management, it is necessary to use high-precision automatic handling equipment to complete high-frequency cargo turnover in extremely narrow channels, greatly reducing manual handling costs.

Director of Auto Parts Manufacturer:

To cope with the cross-production line distribution of super-heavy auto parts and irregular materials, the high bearing capacity of the equipment of 2 tonnes and the adaptability of the high dynamic environment can perfectly guarantee the on-time supply of heavy-duty materials.

3C Electronics Precision Manufacturing Supervisor:

According to the high standard circulation requirements of precision electronic components, the equipment provides a smooth and non-slip shock absorption system and millimetre-level precise positioning to ensure safe and non-destructive docking of high-value materials.

Food and beverage flexible processing manager:

To deal with complex and changeable pallet packaging, AI vision can accurately identify all kinds of laminated pallets, and four-layer safety protection can also adapt to personnel-intensive flexible processing and packaging lines.

Certificates And Factories

证书大图

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

证书小图

FAQ

Q: How narrow can the logistics channel be for an autonomous pallet truck to operate?
A: The width of the body is only 960 mm, and the minimum turning radius is as small as 1360 mm, which is very suitable for flexible operation between extremely narrow passages with limited space and dense shelves.
Q: Can the equipment accurately identify non-standard pallets with surface coating or some damage?
A: Absolutely. It is equipped with an advanced AI recognition algorithm, which can adaptively identify different colours, specifications and even film and complex pallet states with slight damage from multiple angles.
Q: How to ensure the absolute safety of human-robot coexistence when driving in a workshop where people move frequently?
A: The equipment has an ultra-long detection distance of 40 metres and is equipped with a four-layer safety protection system such as 3D obstacle avoidance. LiDAR, anti-collision touch edge and distance sensor. It will stop intelligently when encountering personnel or obstacles.
Q: Does the battery need to be charged for a long time when it is dead? Will it seriously affect the continuous shift production of the factory?
A: full power can work continuously for ten hours. In addition to supporting the regular two- to three-hour fast charging, it also supports the novice to complete the fast manual power change within three minutes, which will not delay the continuous production.
Q: If the layout of the workshop is often adjusted and changed, will the navigation and positioning of the equipment be as accurate?
A: The equipment supports three hybrid navigation modes, such as laser SLAM and reflector, and can still stably provide extremely high positioning accuracy of plus or minus 10 mm in high dynamic scenes where the environment changes.
Q: When there are small potholes or slight slopes on the ground, will the equipment slip when driving with a full load?
A: The whole system comes standard with double-spring shock absorption and an enhanced hydraulic system for driving wheels. It has a strong ability to pass through slopes and step gaps. It can smoothly pass through small potholes and completely avoid slipping problems.
