Compact body and large load
the minimum width of the body is only 932mm, the turning radius is only 1524mm, the narrow passage is unimpeded, and it can stably carry 1.5 T goods at high speed.
DATE: 2026/09/30
Automated Guided Vehicle Manufacturers Professional & Stable
Automated Guided Vehicle Manufacturers

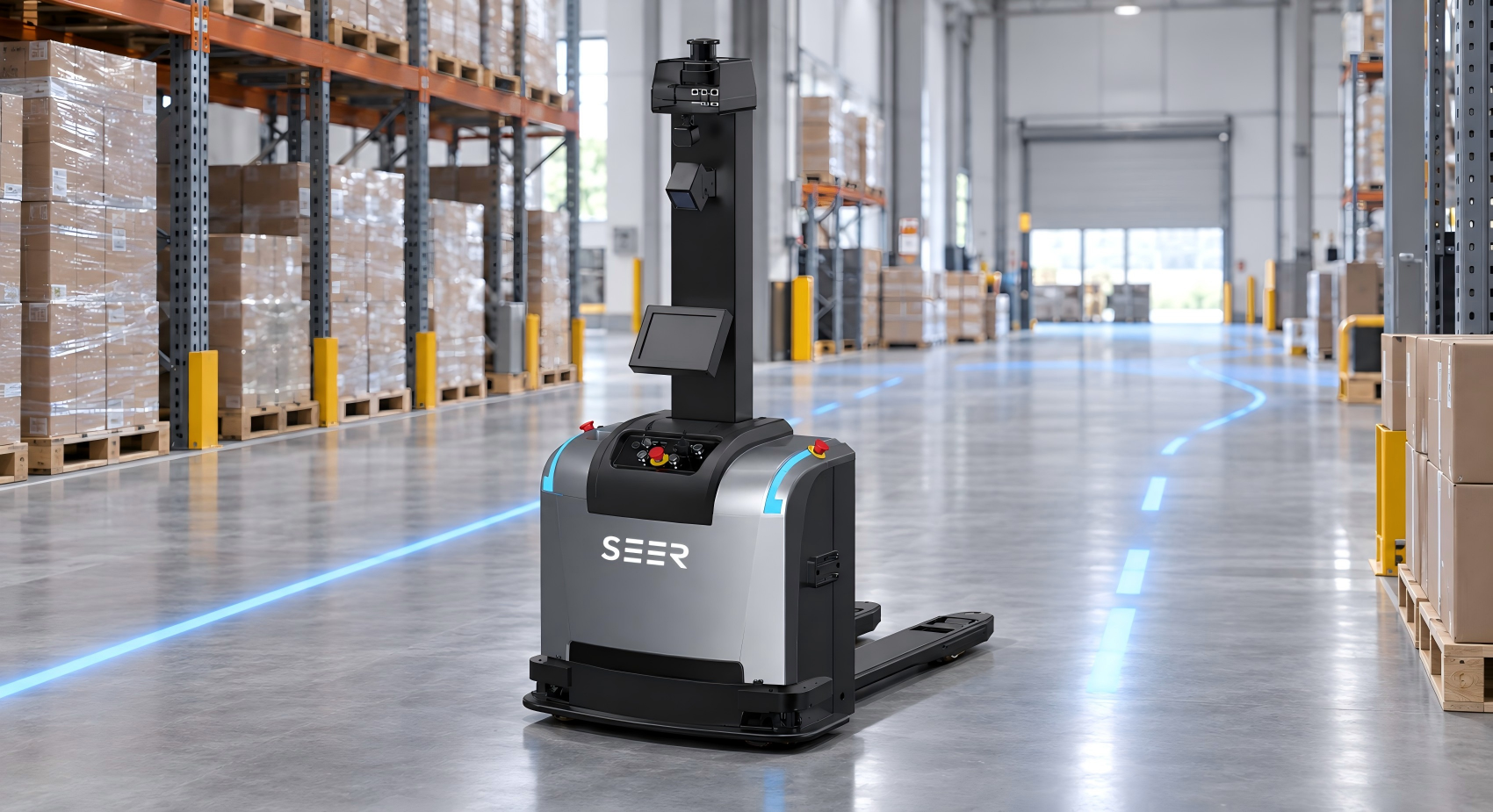

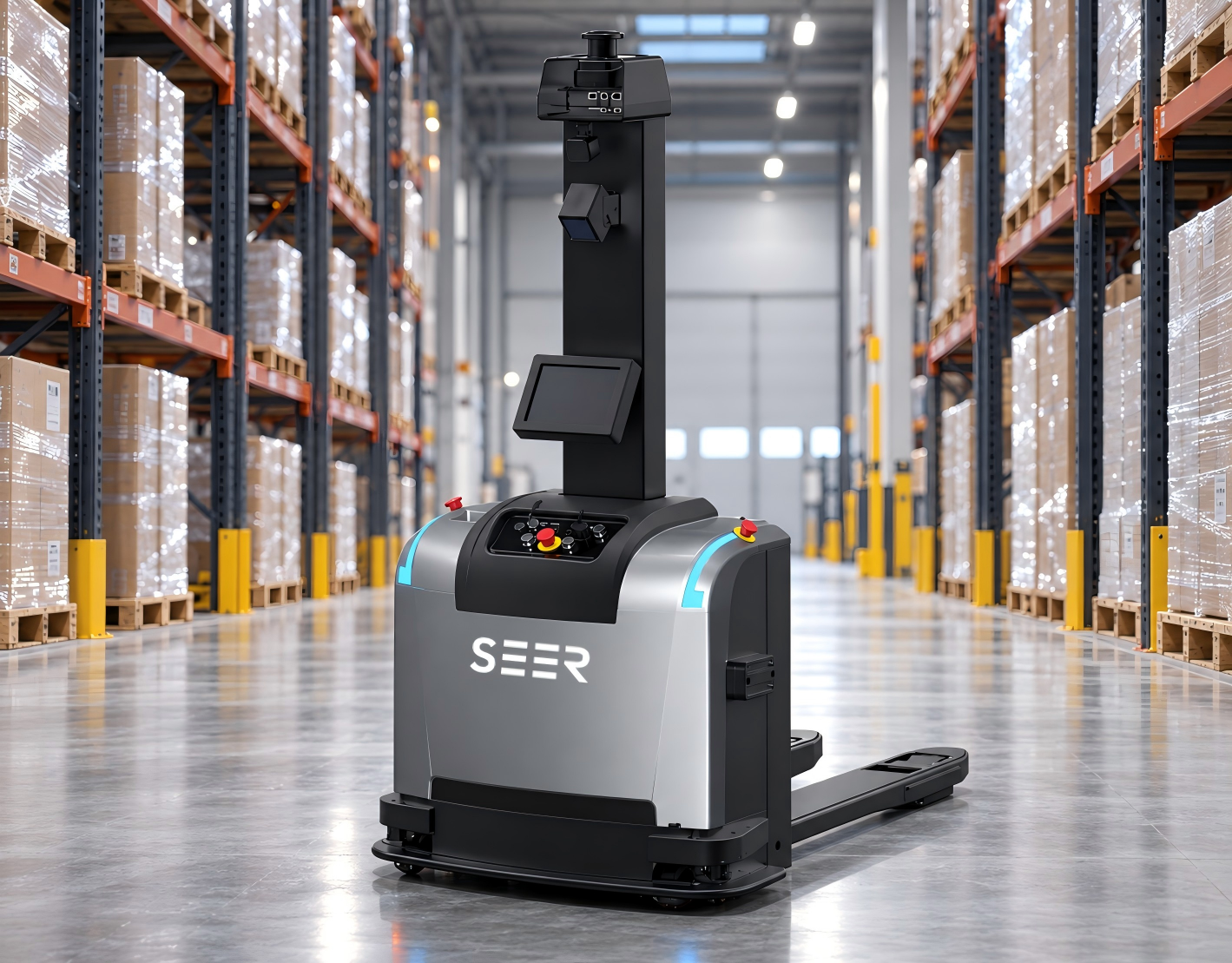

The Laser SLAM intelligent handling forklift independently developed by SEER Robotics has a rated load of 1.5 T and a driving speed of 2 m/s, realizing highly flexible internal material turnover for enterprises. SEER Robotics is a globally leading robotics company specializing in Robot Brain technologies and intelligent robots. With fully self-developed core control architecture and intelligent robot solutions, SEER Robotics delivers flexible, reliable material handling for enterprises worldwide.
This intelligent handling forklift is mainly used for material distribution in automobile assembly lines, production line docking in consumer electronics workshops, material circulation of hardware tools, and storage connection in and out of three-dimensional warehouses.
Rated load
1500 kg
Operating speed
2 m/s
Navigation
Laser SLAM
Automated Guided Vehicle Manufacturers' Characteristics
Omni-directional and all-dimensional safety protection
equipped with 360° large field of view safety obstacle avoidance radar, contact anti-collision strips, ranging sensors, and an optional 3D obstacle avoidance camera, millisecond-level safety response is realized in the man-machine mixed workshop.
Multi-type pallet adaptive identification
The system supports wide-angle adaptive high-precision identification of nine-leg pallets, open pallets, and non-standard material racks, greatly reducing the alignment error between warehousing and picking and placing materials.
Speed map building and super-large scene support
the map building area can reach up to 400000 m², and the maximum driving speed can reach 2 m/s, which can easily cover long-distance material handling across regions in large factories.
High-efficiency charging and changing double battery life
supports fast charging up to 46 A and can be operated after charging for 1 hour. The modular battery supports fast replacement for 3 minutes and expansion of dual batteries, ensuring continuous attendance all day long.
Global Standard Safety Compliance Certification
The hardware and software of the whole machine have undergone rigorous industrial-grade testing and global standard certification, with over-temperature protection and a hardware self-inspection mechanism to meet the stringent sea deployment standards.
Technical Specifications of Automated Guided Vehicle Manufacturers
| Feature | Standard Model | Premium Model |
|---|---|---|
| Specifications Classification | Technical parameters | Detailed technical specifications |
| Basic attributes | Equipment Model | SFL-CBD15 and SFL-CBD15-CE |
| Basic attributes | Rated load capacity | 1500 kg |
| Basic attributes | Load center distance | 600 mm |
| Basic attributes | Standard lifting height of forks | 205 mm |
| Movement size | Overall dimensions of the vehicle body | 1712 x 932 x 1902 mm or 1685 x 980 x 1906 mm |
| Movement size | Fork outer width specifications | 550 mm, 600 mm, 680 mm |
| Movement size | Minimum turning radius | 1524 mm or 1532 mm |
| Dynamic performance | Rated operating speed | 2 m/s or 1.4 m/s |
| Dynamic performance | Climbing and obstacle-crossing ability | Slope less than 5%, steps 10 mm, gaps 30 mm |
| Accuracy indicators | Navigation and positioning repeatability | ±10 mm |
| Accuracy indicators | Navigation attitude angle accuracy | ±1° |
| Energy configuration | Battery voltage and capacity specifications | 48V 23Ah or 48V 46Ah lithium iron phosphate battery |
| Energy configuration | Fast charging operation time | One hour of charging can charge the battery from 10% to 80%. |
| Sensor devices | LiDAR obstacle avoidance configuration | Equipped with high-performance ranging and navigation LiDAR |
| Software Functions | Wireless roaming network support | Industrial-grade dual-band Wi-Fi seamless roaming |
Comparison Points for Automated Guided Vehicle Manufacturers
Ordinary assembly manufacturers usually rely on external procurement of assembly controllers, and system debugging and algorithm response delays are high. SEER Robotics relies on a fully self-developed core control architecture to open up motion control and environmental perception at the bottom, enabling forklifts to have excellent field adaptability and super-large map computing capabilities. Different from the defects of bloated volume and large blind areas of traditional modified vehicles, SEER Robotics deeply integrates the core devices with the industrial safety module. It not only has a small and flexible body but also has out-of-the-box modular calibration capability, greatly reducing the implementation cycle from entry installation to formal production.
Two-way traffic in narrow passages in the workshop is limited
SEER Robotics realizes smooth turning and handling in narrow spaces by reducing the width of the car body to 932 mm and designing a compact wheelbase, thus improving the utilization rate of passages.
Docking deviation caused by mixed specifications of multiple vehicles
SEER Robotics introduces a multi-pallet depth adaptive model to automatically calibrate the angle deviation of non-standard vehicles to prevent gear-cutting collisions and material falling.
Endurance anxiety of continuous multi-shift operation
SEER Robotics adopts 46 A high-rate fast charging and 3-minute battery physical quick-change mode, and the dual battery combination ensures all-weather uninterrupted handling operation.
Automated Guided Vehicle Manufacturers Instructions
Environmental scanning to establish a global map
boot up and connect the special implementation software, operate the forklift to drive in the factory channel, generate a high-precision laser map in real time, and save the calibration data.
01
Drawing of operation location and driving path
draw a single- and two-way channel and location coordinates in the graphical interface, and specify the action logic and lifting height parameters of picking and placing pallets.
02
Business system communication docking and configuration
configure the industrial communication protocol to access the workshop production scheduling platform and set the automatic handling task generation rules and automatic charging threshold.
03
Automatic operation start-up and operation monitoring
the equipment is placed in automatic mode, the system runs autonomously according to the issued work order, and the operator can monitor the operation status in real time through the on-board screen or terminal.
04
Target Audience for Automated Guided Vehicle Manufacturers
Automobile and parts manufacturing enterprises
In view of the current situation of high rhythm, frequent man-machine mixed operation, and various kinds of parts in the automobile production workshop, a material circulation scheme with high-precision navigation and 360-degree obstacle avoidance is provided to ensure that the engine, machine parts, and assembly materials are delivered to the station on time and accurately.
Large-scale third-party logistics and bonded storage center
for modern warehouses with great throughput and obvious order peaks, the small turning radius and flexible three-dimensional storage connection capacity of the equipment are used to replace high-intensity manual sorting and stacking and handling, thus realizing double the storage efficiency and accurate synchronization of accounts.
Consumer electronics and semiconductor packaging processing plant
for the clean manufacturing environment with dense workshop layout and limited channel space, it provides trackless laser SLAM handling without laying two-dimensional codes or magnetic strips on the ground, thus realizing high-speed and stable distribution of turnover material boxes and pallets and eliminating dust and shaking damage.
Hardware tools and mechanical equipment assembly factory
facing the turnover pain points of multi-batch, non-standard pallet materials, and heavy semi-finished products, with a 1.5 T large load capacity and all-round safety protection strips, automatic heavy-duty transfer between cross-process stations is realized, and potential safety hazards of manual handling are eliminated.
Certificates And Factories
FAQ
Q: What is the minimum requirement for the passage width of this forklift?
A: The width of this series is only 932 mm. When the pallets of common specifications are placed along the fork, the width of the right-angle stacking passage is only about 2.2 m, and it can pass through the narrow passage flexibly.
Q: Does deploying this equipment require a modification of the plant floor?
A: Not at all. The equipment adopts autonomous laser SLAM positioning technology and can navigate by scanning the natural outline of the workshop with high-performance LiDAR on the body, without laying magnetic strips or pasting two-dimensional codes.
Q: How to ensure the safety of the equipment when it encounters workers walking or sudden obstacles?
A: The forklift is equipped with a 360° large field of view safety obstacle avoidance radar, contact anti-collision strips, ranging sensors, and an optional 3D obstacle avoidance camera, which can immediately slow down and avoid or stop when detecting people or obstacles.
Q: If there are a variety of different specifications of the pallet workshop, the equipment can be universal?
A: Can be universal. The system supports a variety of standard and non-standard pallets, such as nine-foot pallets and open pallets, and supports wide-angle high-precision adaptive recognition and automatic adjustment of alignment posture to complete fork taking.
Q: How long is the battery life? Can it meet the production of two shifts in the factory?
Answer: The battery life of a single battery can reach 4 to 6 hours, and the double battery can run continuously for 8 to 10 hours. With the design of 1-hour fast charging and 3-minute battery quick change, it can meet the production of two shifts and even all-weather uninterrupted.
Q: How does SEER Robotics ensure the compliance of overseas projects?
A: SEER Robotics provides compliant models that have passed European CE standards and international safety certification, and all electrical and mechanical indicators meet stringent global standards, providing comprehensive protection for the landing of overseas production lines.
