Automatic Guided Vehicle Premium Quality Guaranteed

Automatic Guided Vehicle Premium Quality Guaranteed

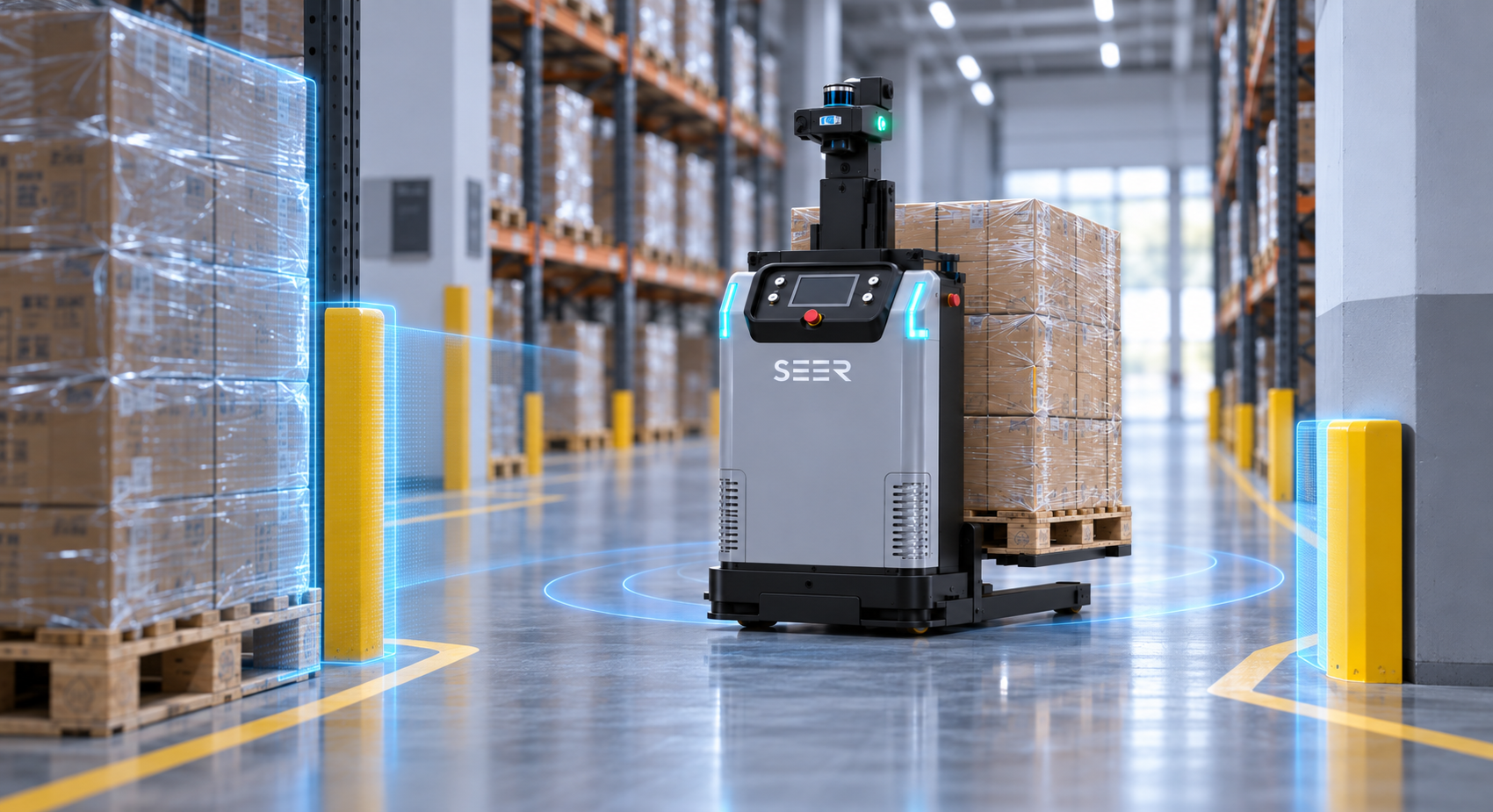

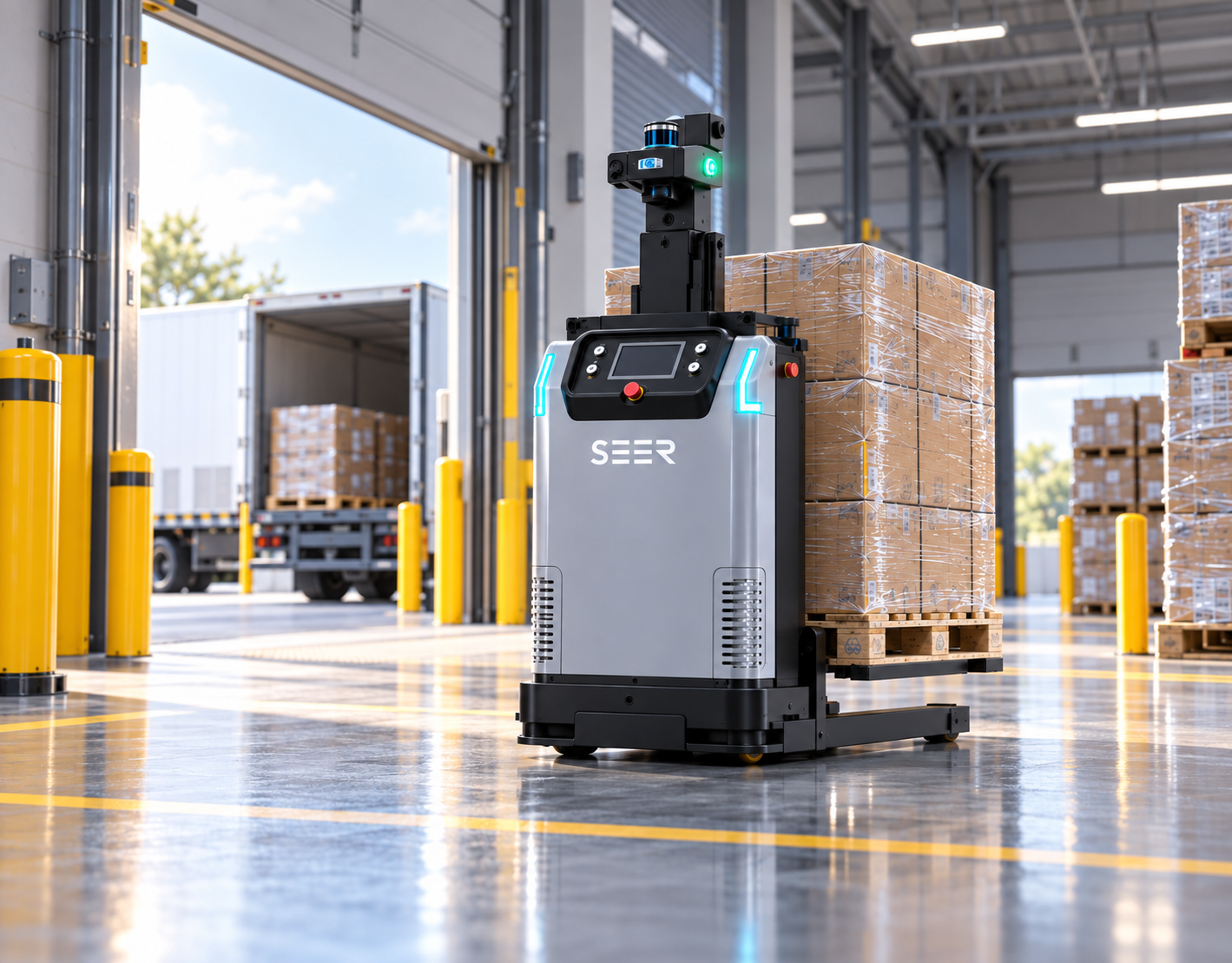

Automatic Guided Vehicle

Widely used in automotive vehicle manufacturing, 3C electronic high-frequency assembly, semiconductor cleanroom, new energy battery production line handling, and other scenarios.

Navigation Type
Laser SLAM
Load capacity
1000 kg
Maximum speed
1.1 m/s

Automatic Guided Vehicle Characteristics

AI deep learning recognition
equipped with a deep learning vision algorithm, it can adaptively recognize various colors, damaged pallets, and cages with high precision to ensure stable loading and unloading of goods by automatic guided vehicle.
Extreme narrow passage force
the body width is only 1200 mm, and the minimum passage width is 1300 mm, which enables an automatic guided vehicle to easily and smoothly pass through dense shelves and extremely narrow passages.
Multiple high-precision navigation options
supports navigation methods such as laser SLAM and natural feature navigation, and the repeated positioning accuracy is as high as plus or minus 10 mm, meeting the precise docking requirements of automatic guided vehicles in dynamic scenes.
Omni-directional three-dimensional anti-collision
The whole vehicle is equipped with 5 obstacle avoidance LiDAR sensors and safe anti-collision contact edges, allowing the automatic guided vehicle to achieve smooth braking and absolutely safe operation in a mixed human-robot operating environment.
Ultra-long endurance fast charging
equipped with a large-capacity lithium iron phosphate battery, the comprehensive full-load endurance is up to 8 hours, and it can be charged to 80% in only 1.5 hours, thus ensuring the uninterrupted operation of the production line around the clock.
Highly flexible customization
the vehicle chassis fully supports 4 kinds of exclusive customization, such as fork width, body height, appearance color, and logo, making the automatic guided vehicle perfectly meet the non-standard handling requirements of different enterprises.
Detailed Technical Specifications Of Automatic Guided Vehicle
Parameter name Detailed Specifications
Product Categories Automatic Guided Vehicle
Navigation type Laser SLAM Navigation
Applicable vehicle types Open pallets and closed pallets
Rated load capacity 1000 kg
Vehicle body weight including battery 450 kg
Fully loaded and unloaded driving speeds 1.1 m/s
Navigation and positioning repeatability ±10 mm
Minimum equipment turning radius 900 mm
Vehicle body physical dimensions Length 1450 mm, Width 1200 mm, Height 556 mm
Standard operating battery specifications 48V high-capacity lithium iron phosphate battery
Overall battery life and charging time 8 hours of battery life with 1.5 hours of fast charging
Number of core obstacle avoidance LiDARs Five

Automatic Guided Vehicle Contrast Point

The automatic guided vehicle robotics is equipped with a highly integrated autonomous core controller, which is faster than traditional handling equipment in drawing and scheduling and can always maintain high-precision and stable operation in a complex dynamic factory environment. With low-code intelligent logistics scheduling software, the equipment can seamlessly connect with the existing manufacturing execution system and can easily realize large-scale collaborative operation of multiple models and the whole plant without complicated secondary development.

Lorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsum Lorem ipsumLorem ipsum
Solves maneuverability challenges in extremely narrow spaces
the design of an ultra-compact body and 900 mm minimum turning radius solves the problem that traditional large forklifts cannot turn smoothly in dense stacking stations.
Eliminate the failure of non-standard carrier identification
the embedded AI vision adaptive algorithm completely solves the loading and unloading pain points of traditional handling equipment that cannot accurately identify multi-angle, damaged, or laminated pallets.
Eliminate potential safety hazards of man-machine cooperation
360-degree laser protection and multi-LiDAR cooperation solve the safety collision risk caused by the excessive blind area of traditional equipment and ensure the safety of workers’ lives.

Automatic Guided Vehicle Instructions

On-site mapping and environmental feature scanning
turn on the equipment and connect the visual implementation software, remotely control it to move at a constant speed in the factory area, and use the vehicle-mounted LiDAR to quickly generate a high-precision contour map of the production workshop.
01
Station delineation and operation path editing
special driving paths, cargo docking stations, and automatic charging docking areas are planned in the digital map interface to easily complete the construction of an intelligent operation network in the factory area.
02
External system docking and task distribution
connect the IP of the equipment to the factory master control LAN and configure the interface, and send the handling instruction through the mobile terminal or management computer, and the equipment will automatically find the way and execute immediately after receiving it.
03
Daily status monitoring and maintenance investigation
through a unified digital fleet management kanban, the current coordinates and power status of all vehicles can be viewed in real time. In case of abnormal alarms, visual log tools can be used to quickly troubleshoot.
04

Target Users Of Automated Guided Vehicles

Automotive manufacturing and parts processing enterprises

for the production line material tracking error-prone, mixed space scheduling difficult car companies. This product with the scheduling system can realize the precise transfer of parts to ensure that the whole vehicle assembly rhythm is absolutely consistent.

3C electronics and communications equipment assembly plant

the face of a variety of frequent line changes and high labor costs of electronic processing plants. Customers can solve the heavy manual handling by introducing this equipment and greatly improve the docking speed of the three-dimensional warehouse.

Semiconductor and new energy cutting-edge workshop

a cutting-edge manufacturing group that requires extremely high positioning accuracy and a stable dust-free operating environment. Positive and negative 10 mm docking accuracy, perfect fit for high-value vulnerable wafers and lithium batteries, and smooth unmanned handling needs.

Heavy machinery and tool equipment manufacturers

production sites often face tight space and non-standard heavy material flow difficulties in the factory. Using its large load capacity and extremely small turning radius, it helps enterprises to complete intelligent circulation between narrow stations.

Certificates And Factories

证书大图

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

证书小图

FAQ

What types of pallets are supported by this automatic guided vehicle?
The device has extremely high vehicle compatibility and can smoothly handle a variety of common vehicles in industrial scenarios, including but not limited to various types of open pallets and closed pallets.
What is the maximum operating speed under full load?
No matter if under full load or no load, the maximum straight-line driving speed of the equipment can stably reach 1.1 m/s, which fully guarantees the efficiency of the daily material turnover of the factory.
What is the daily battery life and charging efficiency of the equipment?
The vehicle chassis is equipped with a large-capacity high-quality lithium iron phosphate battery, which has a comprehensive battery life of up to 8 hours and can be quickly charged to 80% power in only 1.5 hours.
If my factory aisles are very narrow, will this device work properly?
Its body width is specially controlled at 1200 mm, and the minimum turning radius is only 900 mm. It is specially designed to solve the operation problems in extremely narrow passages and dense shelf areas.
Is the equipment safe to operate in a complex workshop where people and vehicles are mixed?
Very safe. The whole vehicle comes standard with up to 5 anti-collision LiDAR and anti-collision edge contact devices, with 360-degree all-round safety protection capability, and will automatically and smoothly brake when encountering personnel.
Can it plug into our existing enterprise warehouse management software?
Support seamless connection. Through its supporting open intelligent logistics management platform, the equipment can quickly access the major mainstream manufacturing execution system and modern warehouse management platform.
