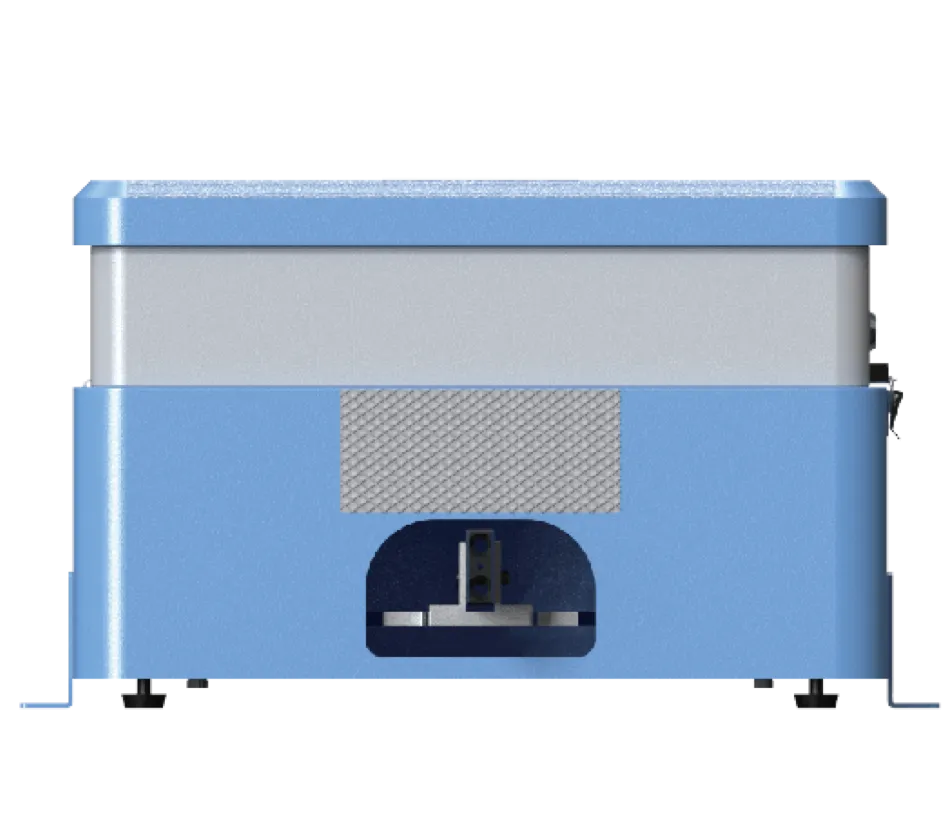

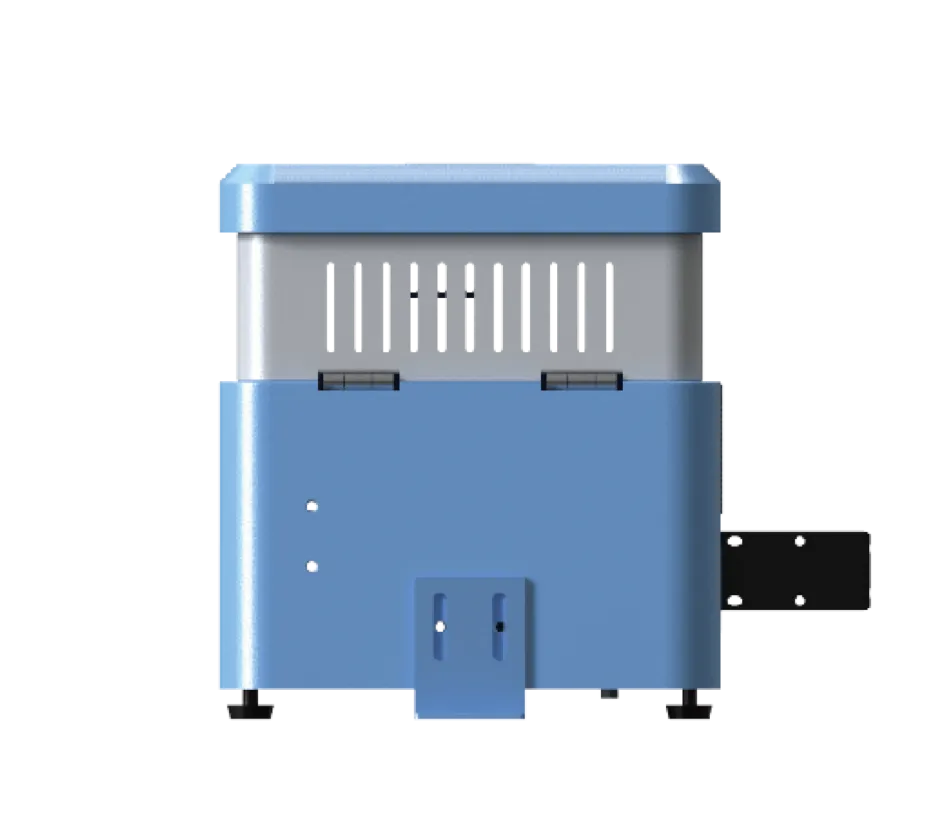

Automatic Charging Station for Mobile Robots

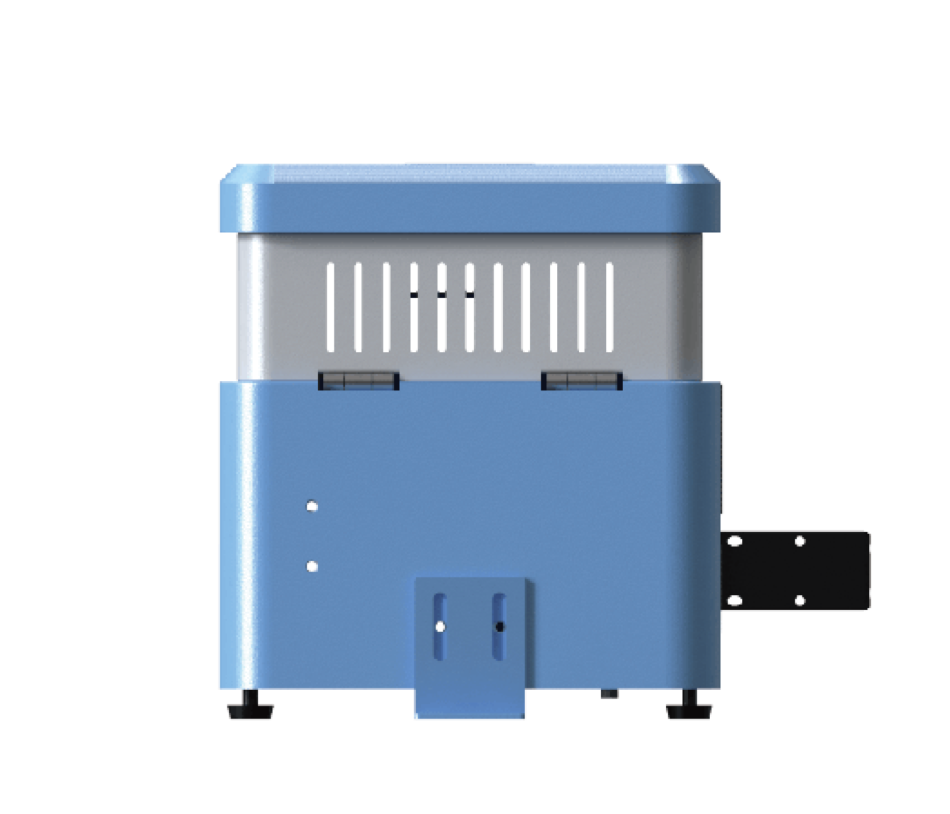

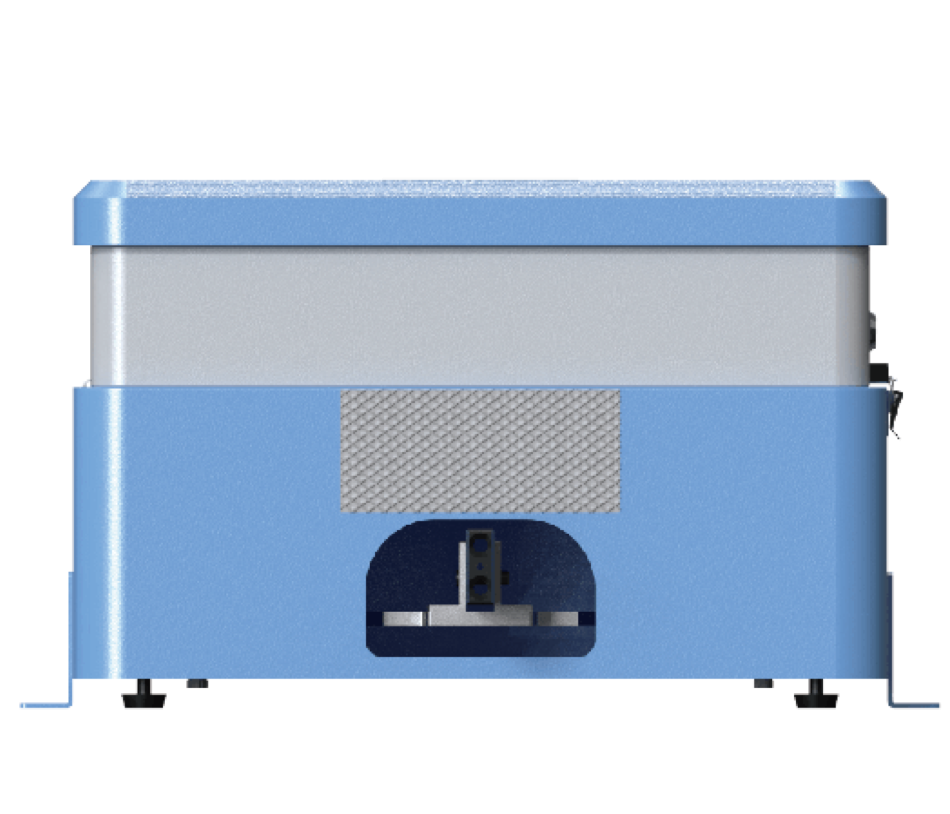

SCS-N4815FV1-JP10
SCS-N4815FV1-JP10
downloadRobots Automatic Charging Station, Mobile Robot Series
Automatic Charging Based on Robots from SEER Robotics
Supports Manual Charging
New Industrial Design
Intelligent Charging: Automatically adjust the power supply strategy according to the battery feedback.
Product Parameters
50 / 60
Input Frequency (Hz)50 / 60
Input Frequency (Hz)50 / 60
Input Frequency (Hz)
48
DC Output Voltage (V)48
DC Output Voltage (V)48
DC Output Voltage (V)
15
DC Output Current (A)15
DC Output Current (A)15
DC Output Current (A)15±5%
Max. Output Current (A)15±5%
Max. Output Current (A)15±5%
Max. Output Current (A)
900
Max. Output Power (W)900
Max. Output Power (W)900
Max. Output Power (W)● Standard ○ Optional - None
| Product model |
|---|
SCS-N4815FV1-JP10 |
| Product name |
|---|
AMR Automatic Charging Station |
| L x W x H |
|---|
520 x 350 x 298.5 mm |
| AC input voltage |
|---|
110 V |
| Input frequency |
|---|
50 / 60 Hz |
| DC output voltage |
|---|
48 V |
| Maximum output voltage |
|---|
54.5±0.2 V |
| DC output current |
|---|
15 A |
| Maximum output current |
|---|
15±5% A |
| Maximum output power |
|---|
900 W |
| Weight |
|---|
20 kg |
| Connector for manual charging |
|---|
LP24-4P (equipped with adapter) |
| Ambient Humidity |
|---|
5% to 90% |
| Working altitude |
|---|
≤2000 m |
| Plug specification |
|---|
JP 10A |
| Suitable product model |
|---|
AMB-800K exclusive (15 A) |
