CE Certification, Safety Guaranteed
The robot has passed the CE certification (ISO3691-4:2023) and other related certifications, ensuring safer operation.
Dynamic Perception, Real-time Adjustment
Equipped with a SEER safety controller, safety laser (multiple switchable field sets), and double safety encoders, real-time perception of running status enables real-time adjustment of the avoidance range, making the robot run more accurately, safely, and efficiently.
AI Deep Learning, Recognize Multiple Carriers
With AI deep learning technology, it can recognize pallets in various specifications, different colors, wrapped or damaged pallets, and racks and cages. It can also adaptively recognize from multiple angles and with high precision for stable loading and unloading.
10-hour Endurance, 3-minute Battery Swap
Equipped with a 24 V / 212 Ah battery, the endurance is up to 10 hours. It supports quick battery replacement within 3 minutes for greater convenience.
3D Visual Obstacle Avoidance, 360° Safety Protection
Equipped with a 3D obstacle avoidance camera, it can scan objects within a distance of 0.2 m to 5 m and achieve depth data measurement of objects within this range for greater safety.
Product Parameters
1500
Rated Load Capacity (kg)1500
Rated Load Capacity (kg)1500
Rated Load Capacity (kg)
10
Comprehensive Battery Life (h)10
Comprehensive Battery Life (h)10
Comprehensive Battery Life (h)
2944
Standard Lifting Height (mm)2944
Standard Lifting Height (mm)2944
Standard Lifting Height (mm)
1292.6
Minimum Turning Radius (mm)1292.6
Minimum Turning Radius (mm)1292.6
Minimum Turning Radius (mm)
±10, ±0.5
Positioning Accuracy (mm,°)±10, ±0.5
Positioning Accuracy (mm,°)±10, ±0.5
Positioning Accuracy (mm,°)
1.5 / 1.8
Driving Speed (Full load / No load) (m/s)1.5 / 1.8
Driving Speed (Full load / No load) (m/s)1.5 / 1.8

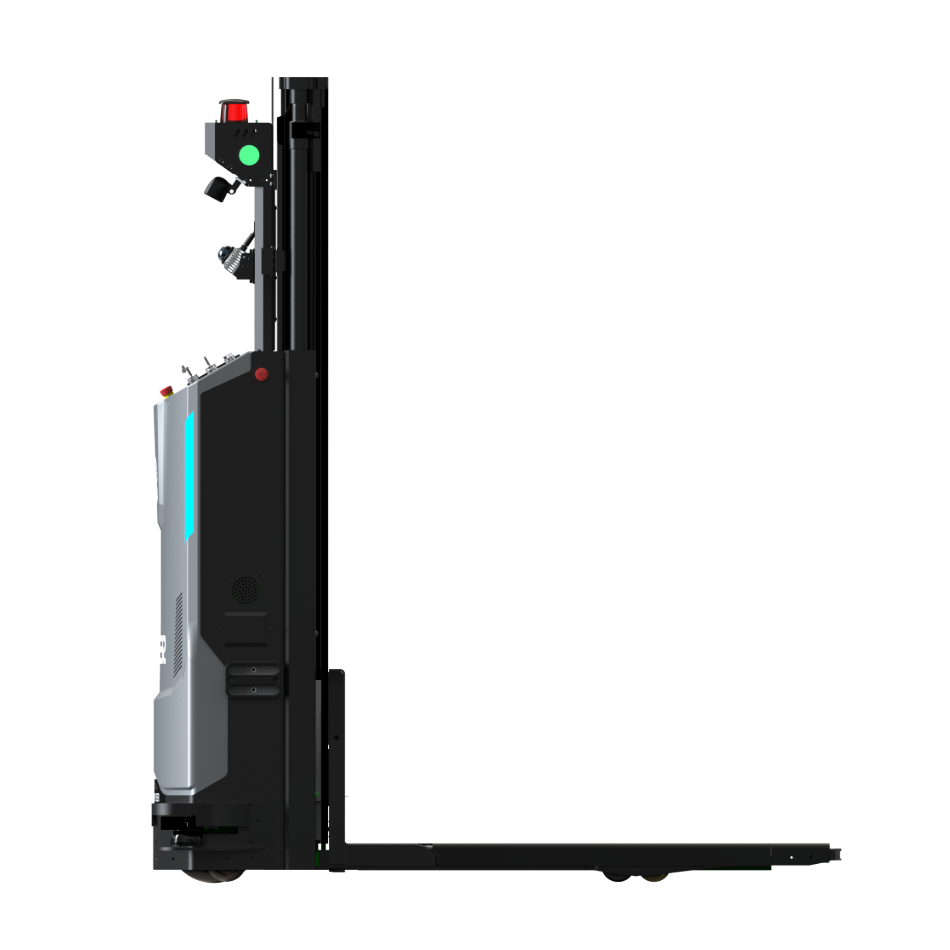

Driving Speed (Full load / No load) (m/s)| Product model | SSS-1500EU |
| Product name | Safety SEER SlimStack 1500 |
| Operation type | Automatic navigation, by manual control device |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet |
| Rated load capacity | 1500 kg |
| Load centre distance | 600 mm |
| Weight (with battery) | 835 kg |
| Standard lifting height | 2944 mm |
| Forklift dimensions: L x W x H | 1681 x 1104 x 1997.5 mm |
| Fork dimensions: L x W x H | 1200 x 185 x 55 mm |
| Fork outer width | 555 / 600 mm |
| Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork) | 2025+200 mm |
| Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork) | 1960+200 mm |
| Right-angle stacking aisle width, pallet 1000x1000 (1000 placed along the fork) | 1822+200 mm |
| Minimum turning radius | 1292.6 mm |
| Ambient temperature and humidity range | TEMP: 0℃ to 50℃ / RH: 10% to 90%, no compression, no condensation |
| Driving speed: full load / no load | 1.5 / 1.8 m/s |
| Passability (slope / step / gap) | ＜5% / 20 mm / 30 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±0.5° |
| Battery specifications | 24 V / 212 Ah (lithium iron phosphate) |
| Comprehensive battery life | 10 h |
| Charging time (10% to 80%) | 2 h |
| Charging method | Manual / Automatic |
| Lidar number | 1 (P+F R2000)+3 (SICK HV) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ○ |
| Pallet recognition | ○ |
| Cage stack | ○ |
| High shelf pallet recognition | ○ |
| Pallet stack | ○ |
| HMI display | ● |
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm |
| 360° laser protection | ● |
| Bumper strip | ● |
| Fork height protection | ● |
| Product model | Safety SEER SlimStack 1500 |
