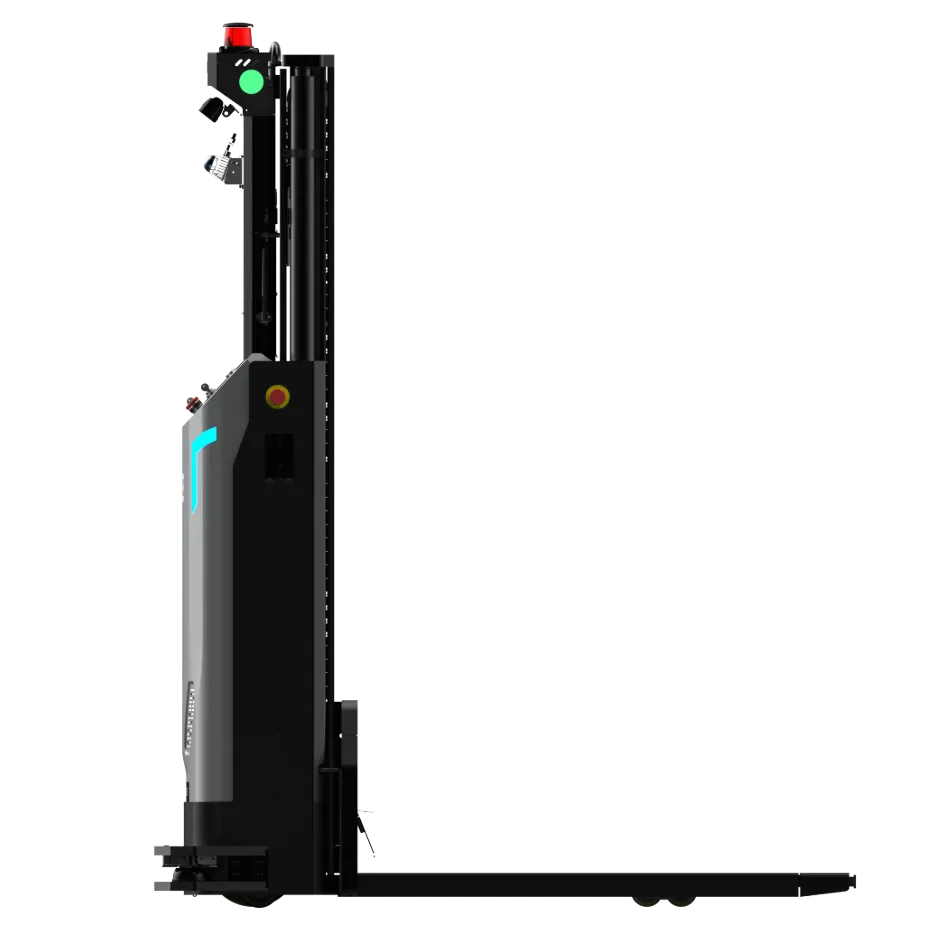

Safety SEER SlimStack 2000
downloadCE Certification, Capable of 2 T Stacking and Flexible for Use
2 T Load Capacity, Perfect for Narrow Aisles
With a load capacity of up to 2 tons, it supports fork heights of 1600 mm and 3000 mm. With a robot width of just 1039 mm and a minimum turning radius of only 1337 mm, it navigates effortlessly through narrow aisles.
AI Deep Learning, Improved Recognition Ability
It boasts the capability to recognize pallets, racks and cages in different colors and sizes with unparalleled precision and adaptability from multiple angles, achieving seamless and stable loading and unloading.
CE Certification, Highly Costeffective
The robot has passed the CE certification (ISO3691-4:2023) and other related certifications. It boasts high cost-effectiveness while ensuring good performance.
Multiple Sensors, Applicable in Various Scenarios
It supports 360° wide-range scanning and is equipped with multiple sensors such as 2D safety avoidance lasers, distance sensors, and pallet recognition cameras, applicable in various scenarios.
Flexible Customization with 4 Options
Supports customization of fork width, robot height, color and logo. Tailored to meet the diverse requirements of your unique business scenarios.
2 h Charging, 10 h Endurance
Paired with a 24 V / 210 Ah battery, it automatically charges for 2 hours and boasts a range of up to 10 hours, ensuring prolonged operation.
Product Parameters
2000
Rated Load Capacity (kg)2000
Rated Load Capacity (kg)2000
Rated Load Capacity (kg)
10
Comprehensive Battery Life (h)10
Comprehensive Battery Life (h)10
Comprehensive Battery Life (h)
1600 / 3000
Standard Lifting Height (mm)1600 / 3000
Standard Lifting Height (mm)1600 / 3000
Standard Lifting Height (mm)
1337
Minimum Turning Radius (mm)1337
Minimum Turning Radius (mm)1337
Minimum Turning Radius (mm)
±10, ±0.5
Positioning Accuracy (mm,°)±10, ±0.5
Positioning Accuracy (mm,°)±10, ±0.5
Positioning Accuracy (mm,°)
1.5 / 1.8
Driving Speed (Full load / No load) (m/s)1.5 / 1.8
Driving Speed (Full load / No load) (m/s)1.5 / 1.8
Driving Speed (Full load / No load) (m/s)| Product model | SSS-2000EU |

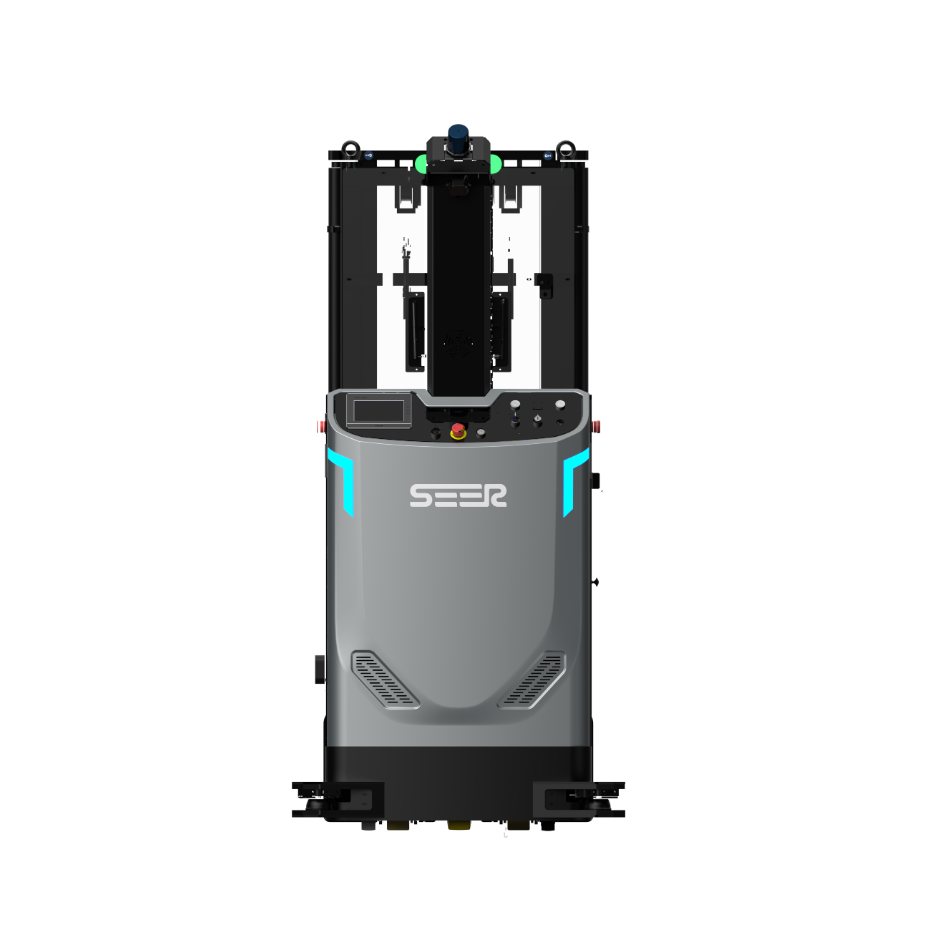

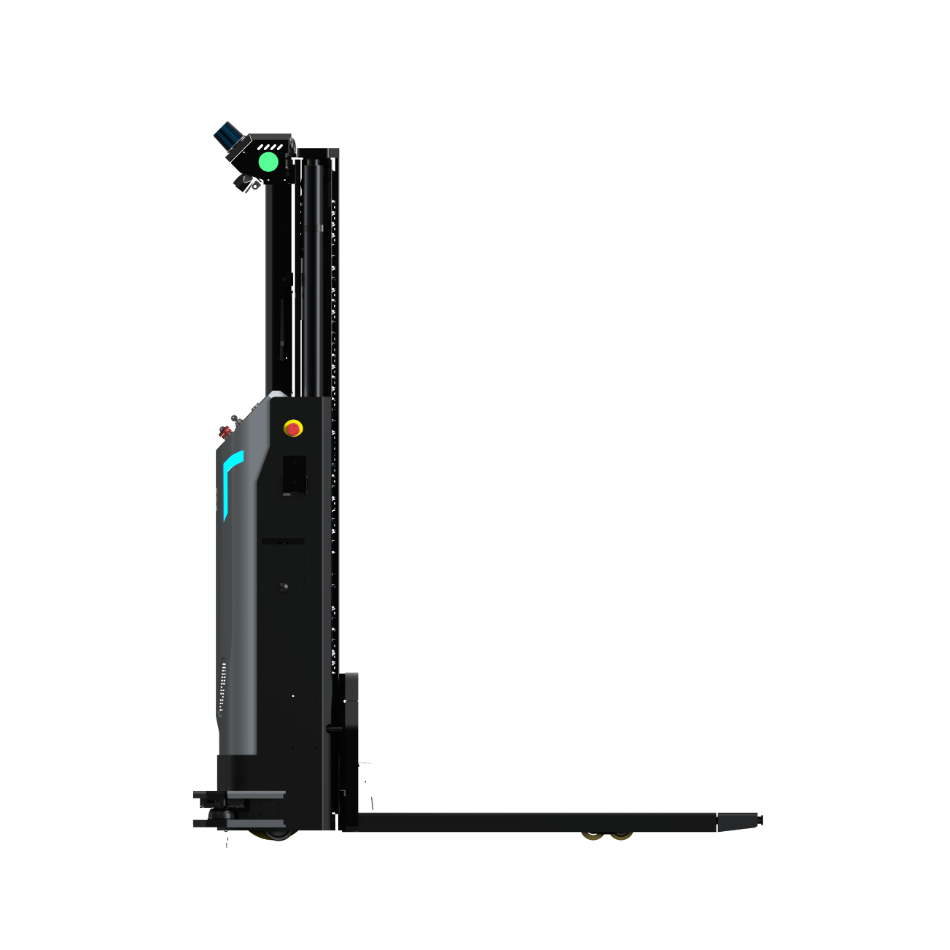

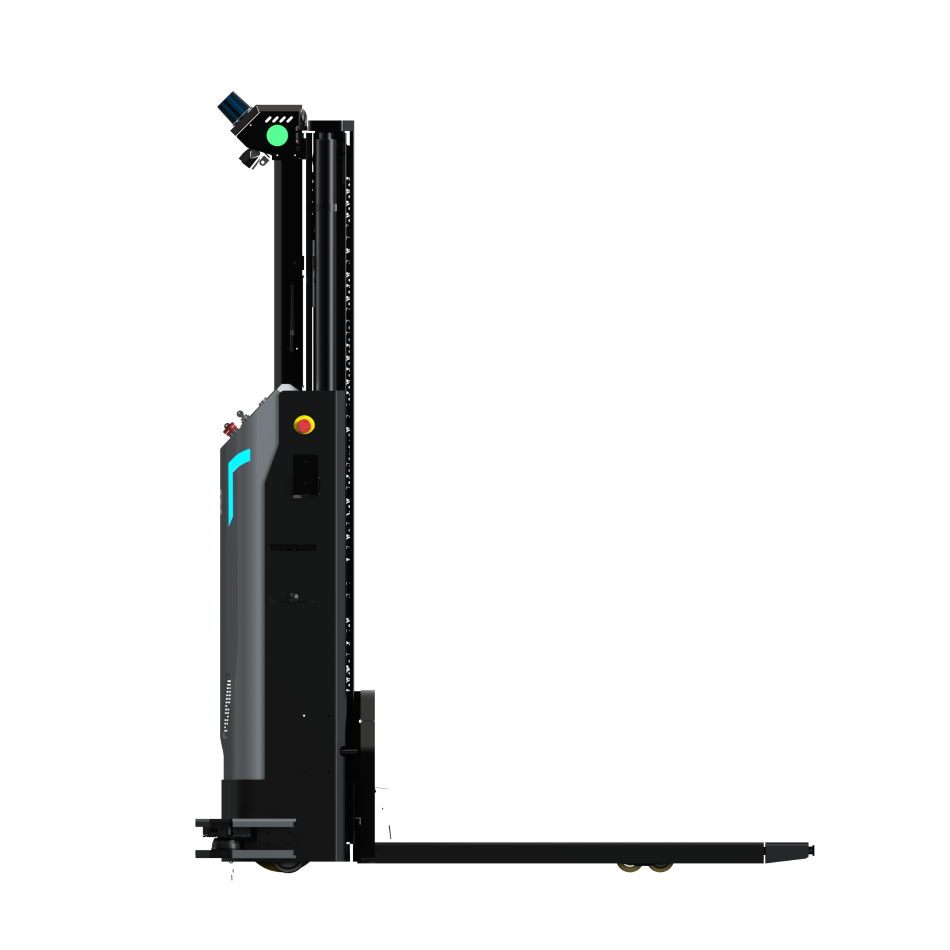

| Product name | Safety SEER SlimStack 2000 |
| Operation type | Automatic navigation |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet |
| Rated load capacity | 2000 kg |
| Load centre distance | 600 mm |
| Weight (with battery) | 950 / 1175 kg |
| Standard lifting height | 1600 / 3000 mm |
| Forklift dimensions: L x W x H | 1724 x 1039 x 1995 / 1724 x 1039 x 2195 mm |
| Fork dimensions: L x W x H | 1220 x 180 x 60 mm |
| Fork outer width | 555 / 600 / 680 mm |
| Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork) | 2003+300 mm |
| Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork) | 1932+300 mm |
| Right-angle stacking aisle width, pallet 1000x1000 (1000 placed along the fork) | 1892+300 mm |
| Minimum turning radius | 1337 mm |
| Ambient temperature and humidity range | TEMP: 0℃ to 50℃ / RH: 10% to 90%, no compression, no condensation |
| Driving speed: full load / no load | 1.5 / 1.8 m/s |
| Passability (slope / step / gap) | <5% / 10 mm / 30 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±0.5° |
| Battery specifications | 24V / 210 Ah (lithium iron phosphate) |
| Comprehensive battery life | 10 h |
| Charging time (10% to 80%) | 2 h to 2.5 h |
| Charging method | Manual / Automatic |
| Lidar number | 1 (P+F R2000) + 2 (SICK HV)+1 (C200) or 1 (Mid360) +2 (SICK HV) + 1 (C200) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ● |
| Pallet recognition | ● |
| Cage stack | ○ |
| High shelf pallet recognition | ○ |
| Pallet stack | ○ |
| HMI display | ● |
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1 m/s / 1.5 m/s | ≤40 cm / ≤50 cm |
| 360° laser protection | ● |
| Fork height protection | ● |
| ISO 3691-4 | ● |
| EMC | ● |
| UN38.3 | ● |
| RED | ● |
| Product model | Safety SEER SlimStack 2000 |
