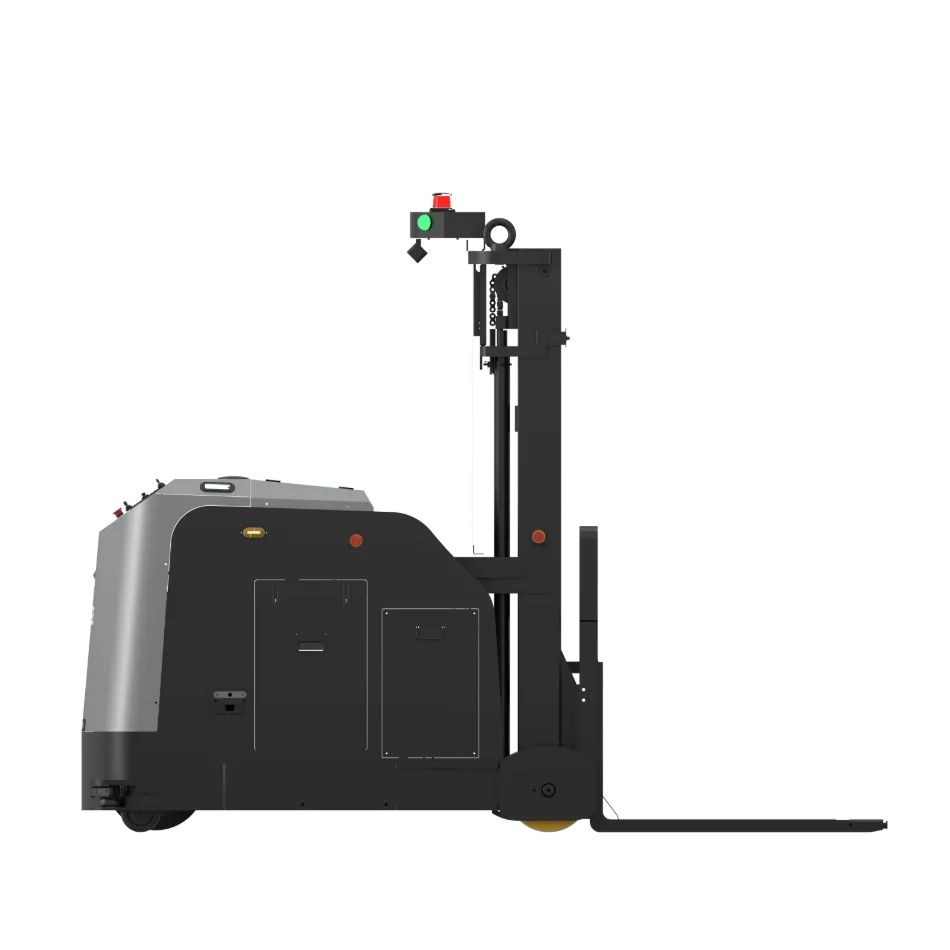

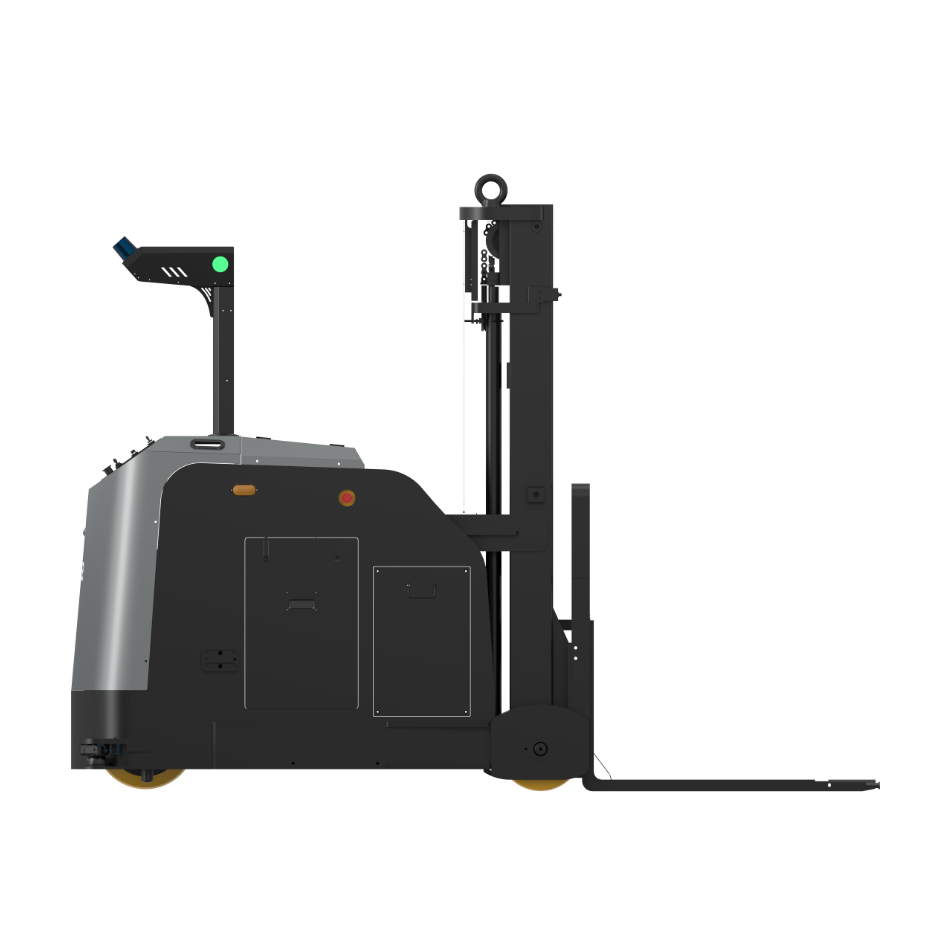

Safety SEER Counterbalance Truck

SCB-3000EU
SCB-3000EU

CE Certification, Superb Load Capacity, Flexible Expansion

icon

CE Certification, Safety Guaranteed

The robot has passed the CE certification (ISO3691-4:2023) and other related certifications, ensuring safer operation.

icon

AI Carrier Recognition, Highly Precise and Efficient

Equipped with the AI deep recognition algorithm and the deep recognition camera, it can identify the carriers in real time. The fork can be manually adjusted within a range of 450 mm to 750 mm. It supports pallets, racks and cages of multiple sizes and types. It can recognize objects (such as nine-legged pallets, open pallets, and non-standard pallets) from multiple angles with high precision.

icon

12-hour Long Endurance, 2-Minute Quick Battery Swap

Supports beginners with a 2-minute quick battery swap, ensuring worry-free endurance. Equipped with a 48V / 315 Ah battery for 10-12 hours of long endurance, paired with a 48 V fast-charging pile. Just 10 minutes of charging provides half an hour of operation.

icon

360° Scanning Range, Multi-layer Safety Protection

The 360° maximum scanning range and 30 m detection range provides a broader vision and enhanced safety. Equipped with 2D obstacle avoidance laser, distance sensor and hardware self-checks, our robot offers you unparalleled multi-layer safety protection.

icon

Ultrasonic Detection, Safe Stacking

Real-time ultrasonic detection of the separation status between goods and forks, coupled with adaptive laser dynamic monitoring of load height during stacking, ensuring safe stacking.

icon

3 T Intelligent High Load Capacity, Multiple Flexible Customizations

Featuring a 3-ton superb load capacity, it supports intelligent cargo detachment detection, soft body safety stacking. It supports multiple flexible customizations, such as size, fork automatic pitch, fork automatic adjustment, etc.

Product Parameters

rated-load

3000

Rated Load Capacity (kg)
runtime

10~12

Comprehensive Battery Life (h)
max-lifting-height

3000 / 3500

Standard Lifting Height (mm)
minimum-turning-radius

1859

Minimum Turning Radius (mm)
positioning-accuracy

±10,±1

Positioning Accuracy (mm,°)
navigation-speed

1.0 / 1.5

Driving Speed (Full load / No load) (m/s)
● Standard    ○ Optional    - None
Product model

SCB-3000EU

dom-icon
Product name

Safety SEER Counterbalance Truck

Operation type

Automatic navigation

Navigation type

Laser SLAM

Pallet type

Open pallet / closed pallet

Rated load capacity

3000 kg
(6613.86 lb)

Load centre distance

500 mm
(19.69 in)

Weight (with battery)

4970 / 5030 kg
(10956.96 / 11089.24 lb)

Standard lifting height

3000 / 3500 mm
(118.11 / 137.80 in)

Forklift dimensions: L x W x H

3222 x 1420 x 2441 mm / 3302 x 1420 x 2718 mm
(126.85 x 55.91 x 96.10 / 130.00 x 55.91 x 107.01 in)

Fork dimensions: L x W x H

1220 x 135 x 45 mm
(48.03 x 5.31 x 1.77 in)

Fork outer width

450 mm to 750 mm
(17.72 to 29.53 in)

Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork)

3394+200 mm / 3464+200 mm
(133.62+7.87 / 136.38+7.87 in)

Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork)

3394+200 mm / 3464+200 mm
(133.62+7.87 / 136.38+7.87 in)

Right-angle stacking aisle width, pallet 1000x1000 (1000 placed along the fork)

3388+200 mm / 3452+200 mm
(133.39+7.87 / 135.91+7.87 in)

Minimum turning radius

1859 mm
(73.19 in)

Ambient temperature and humidity range

TEMP: 0℃ to 50℃ / RH: 10% to 90%, no compression, no condensation
(TEMP: 32F to 122F / RH: 10% to 90%, no compression, no condensation)

Driving speed: full load / no load

1.0 / 1.5 m/s
(3.28 / 4.92 ft/s)

Passability (slope / step / gap)

<3% / 10 mm / 30 mm
(<3% / 0.39 in / 1.18 in)

Navigation position accuracy

±10 mm
(±0.39 in)

Navigation angle accuracy

±1°

Battery specifications

48 V / 315 Ah (lithium iron phosphate)

Comprehensive battery life

10 h to 12 h

Charging time (10% to 80%)

3 h to 5 h

Charging method

Manual / Automatic

Lidar number

1 (P+F R2000) +3 (SICK HV)or 1 (P+F R2000) +2 (SICK HV) +1 (C200)

Wi-Fi roaming

3D obstacle avoidance

Pallet recognition

Cage stack

High shelf pallet recognition

Pallet stack

HMI display

E-stop button

Sound and light indicator

Braking distance: 1 m/s / 1.5 m/s

≤30 cm / ≤50 cm
(≤11.81 in / ≤19.69 in)

360° laser protection

Fork height protection

ISO 3691-4

EMC

UN38.3

RED

Product model

SEER Counterbalance Truck
